PASSIVE FIRE PROTECTION | SINCE 1994
PCO
World’s first complete electrical fire defence system
Fire does not stayin the panel.
01

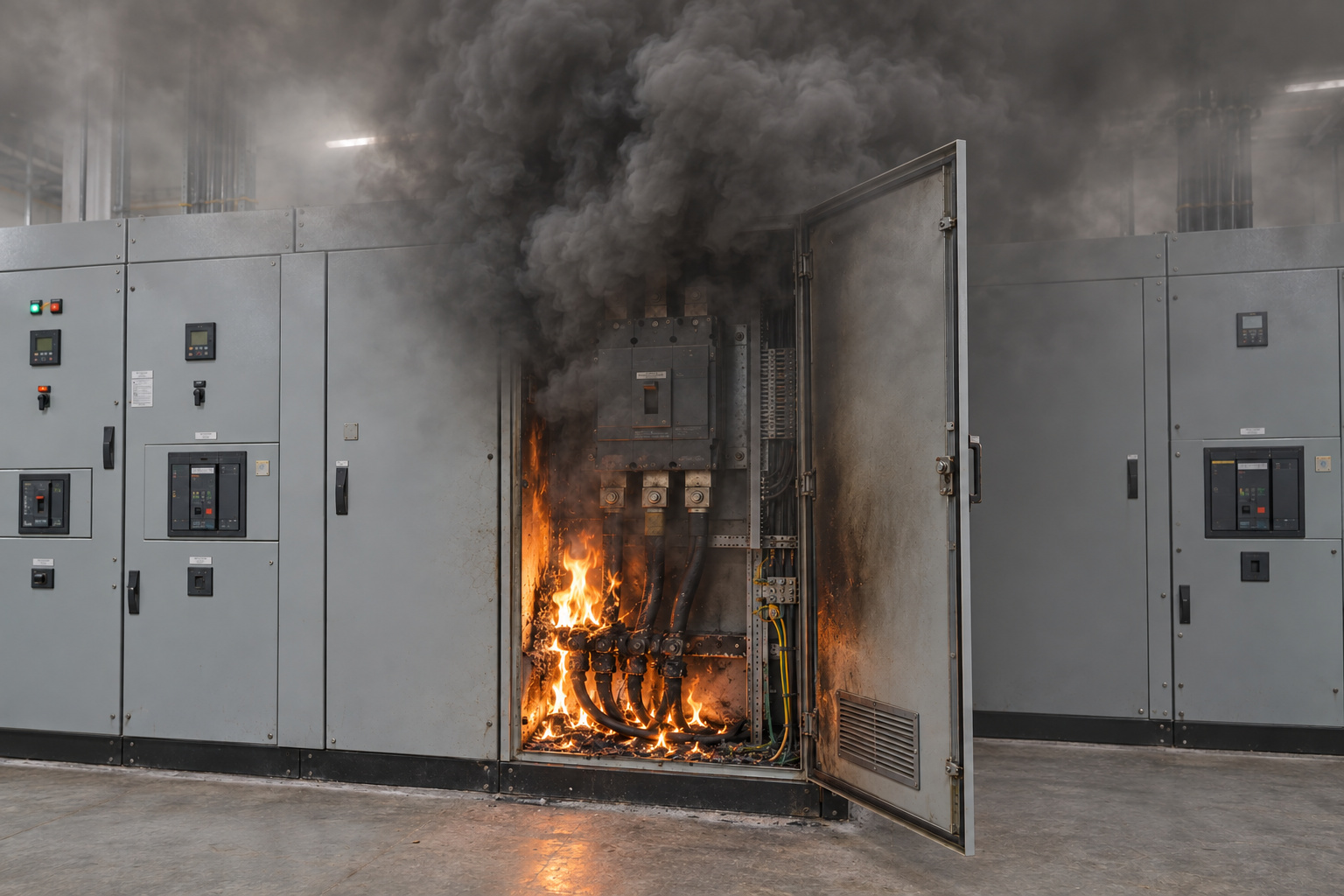

PANEL CATCHES FIRE.
SMOKE BUILDS.
SMOKE BUILDS.
02

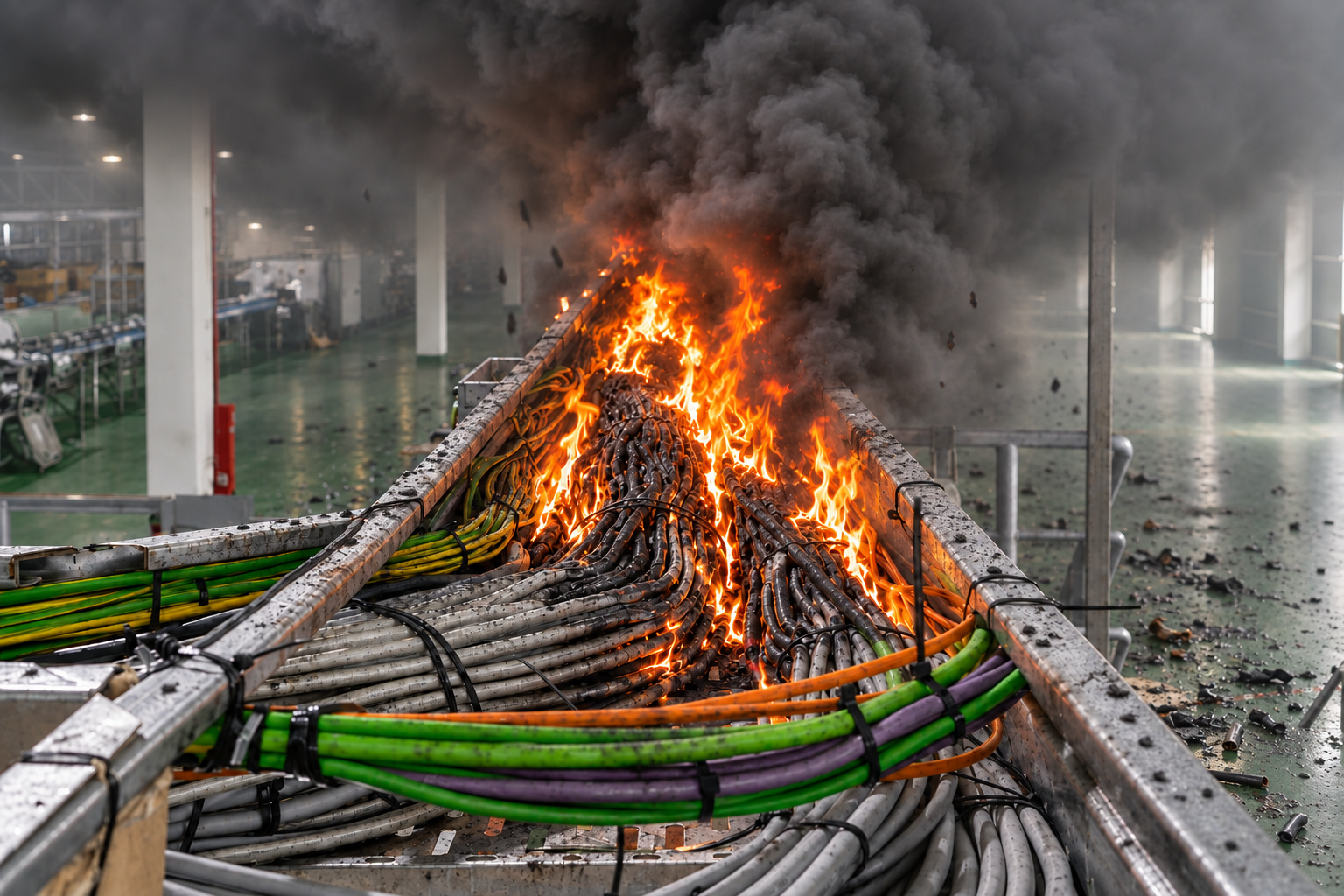

CABLES CARRY FIRE.
INSULATION IS FUEL.
INSULATION IS FUEL.
03

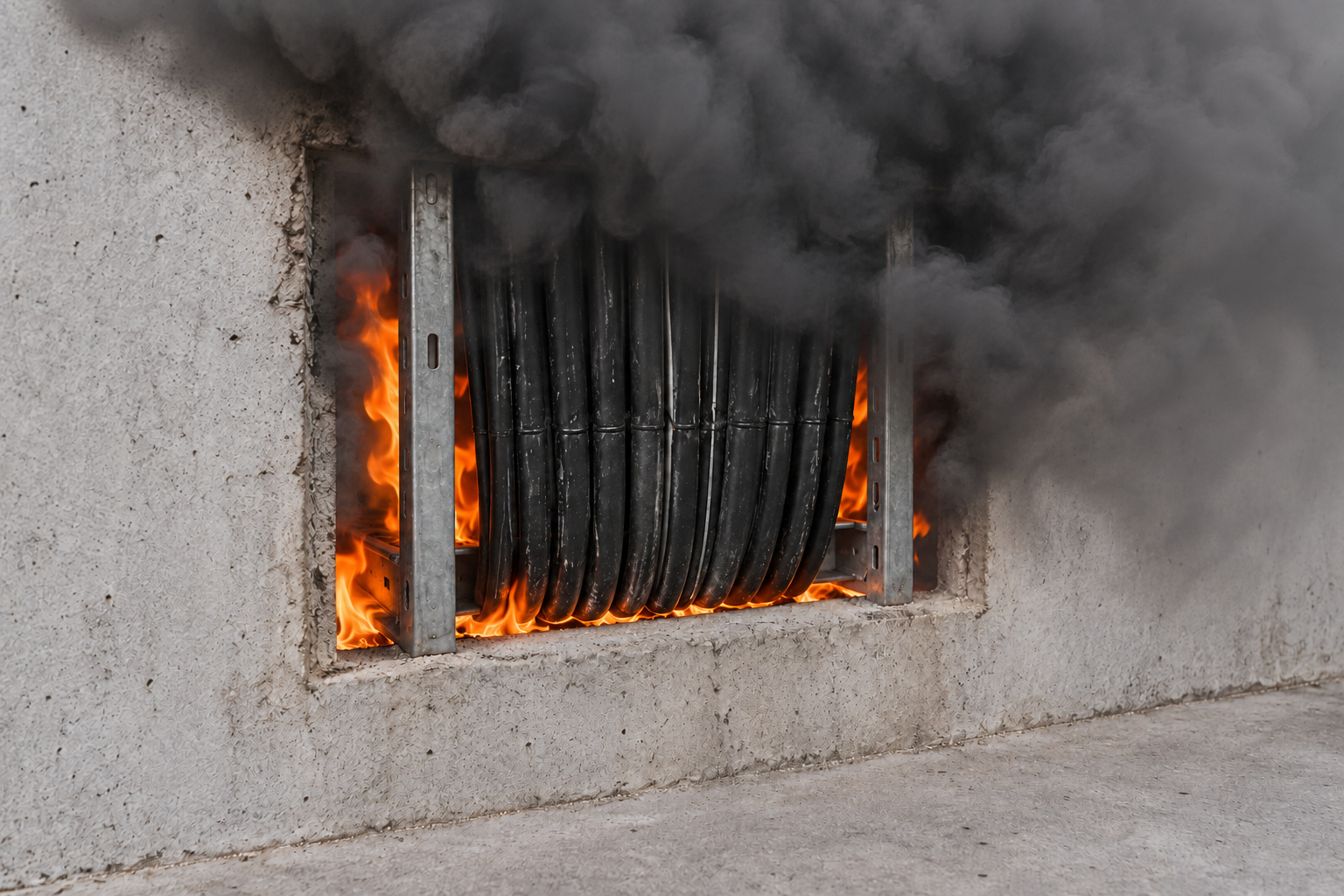

FIRE + SMOKE CROSS
UNSEALED OPENINGS
UNSEALED OPENINGS
Smoke threatens lives.
THE FIRE MAY LAST HOURS.
THE SHUTDOWN CAN LAST MONTHS.
01
PANELS
SEAL GAPS. COAT PANELS.

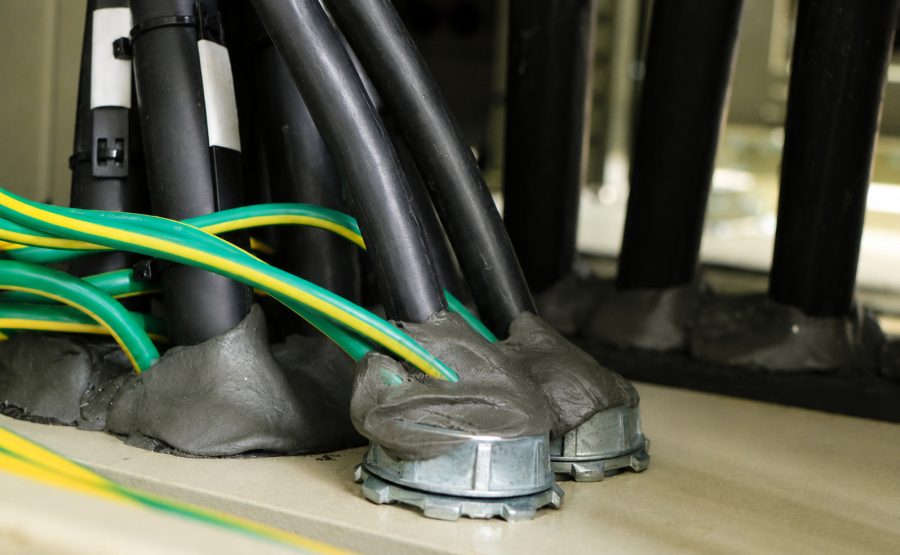

SEAL CABLE ENTRIES.
LIMIT AIR.
BLOCK FIRE + SMOKE.
LIMIT AIR.
BLOCK FIRE + SMOKE.
FIREX FBS 73
FLEXIBLE, REOPENABLE FIRE-SEALANT PUTTY
Seals panel gaps and cable entries.
Limits air (oxygen) entry.
Blocks fire and smoke spread.
Keeps out dust, moisture, insects and rodents.
Limits air (oxygen) entry.
Blocks fire and smoke spread.
Keeps out dust, moisture, insects and rodents.
UP TO 2 HOURS | IS 12458
FIREX DC 52
STOP PANEL PAINT FEEDING FIRE.
Intumescent coating over internal panel paint.
Shields components from heat.
Shields components from heat.
INDIA’S FIRST PANEL FIRE-BARRIER COATING
MCCs | DBs | panels | junction boxes | machine cabinets
02
CABLES
STOP SPREAD. KEEP CIRCUITS WORKING.

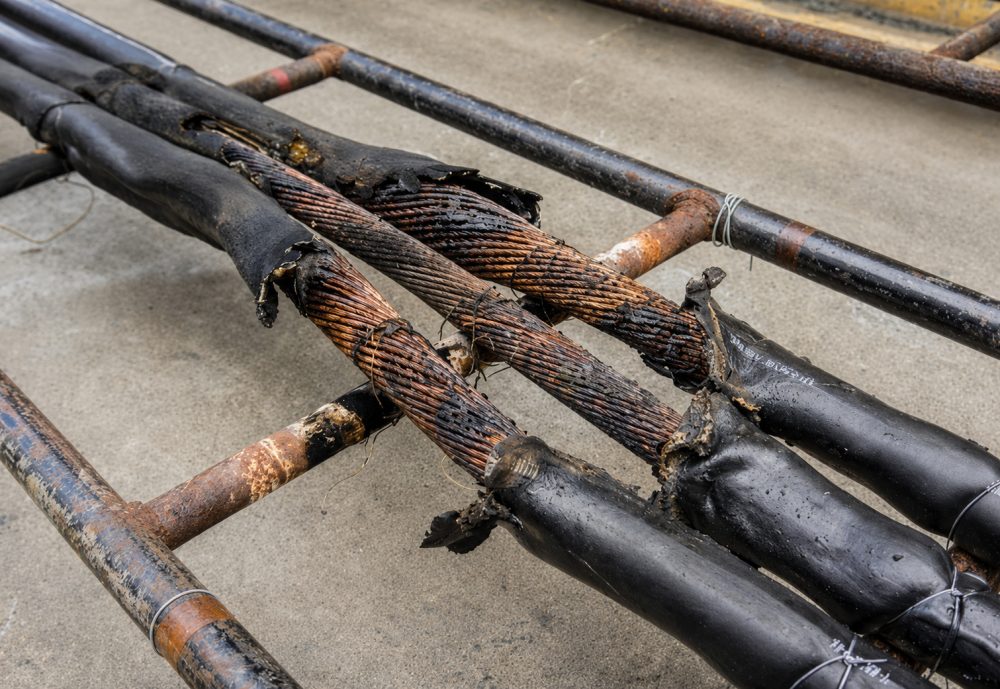

BURNT CABLES.
COSTLY REPLACEMENT.
COSTLIER SHUTDOWN.
COSTLY REPLACEMENT.
COSTLIER SHUTDOWN.

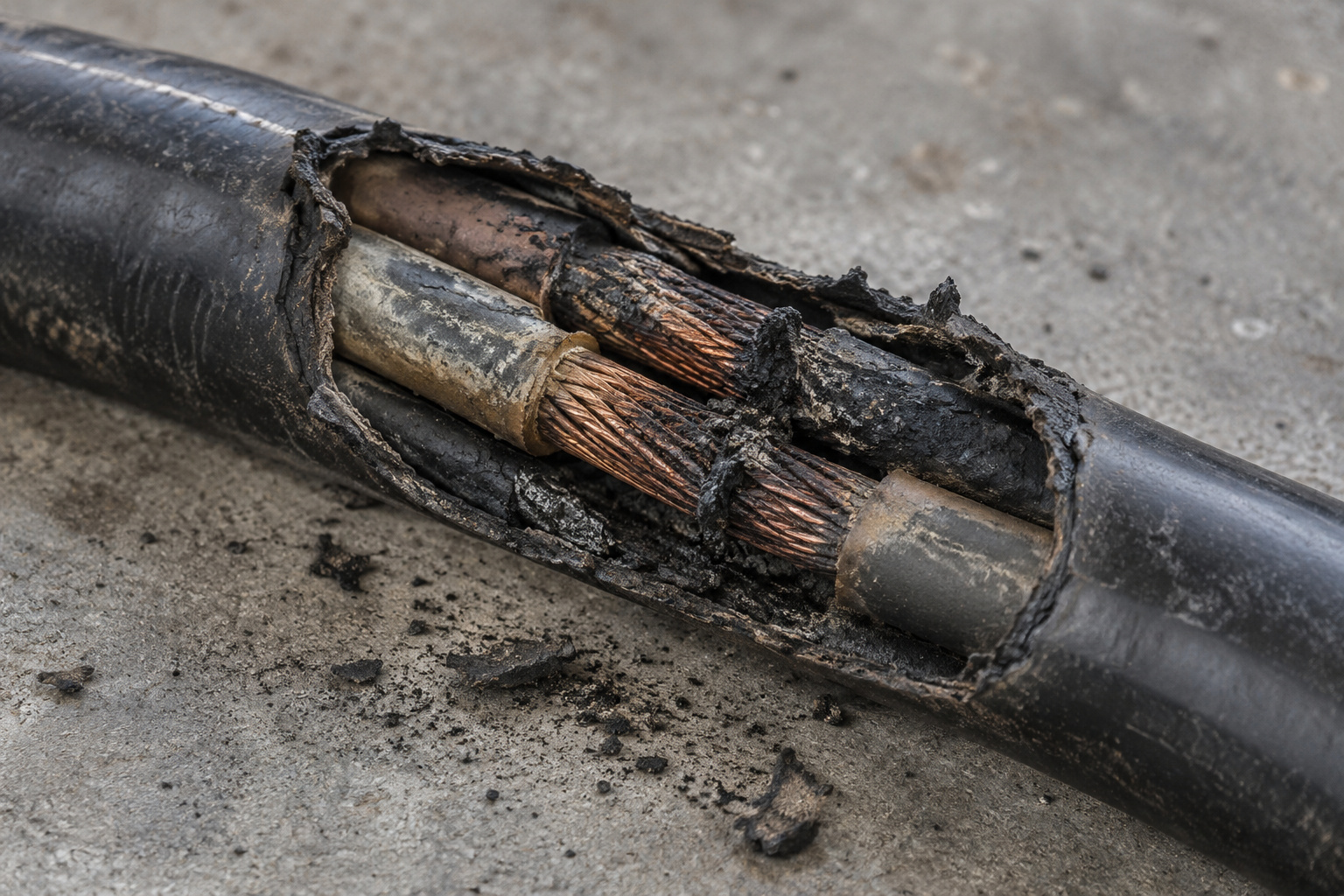

INSULATION FAILS.
CONDUCTORS SHORT.
CIRCUITS FAIL.
CONDUCTORS SHORT.
CIRCUITS FAIL.

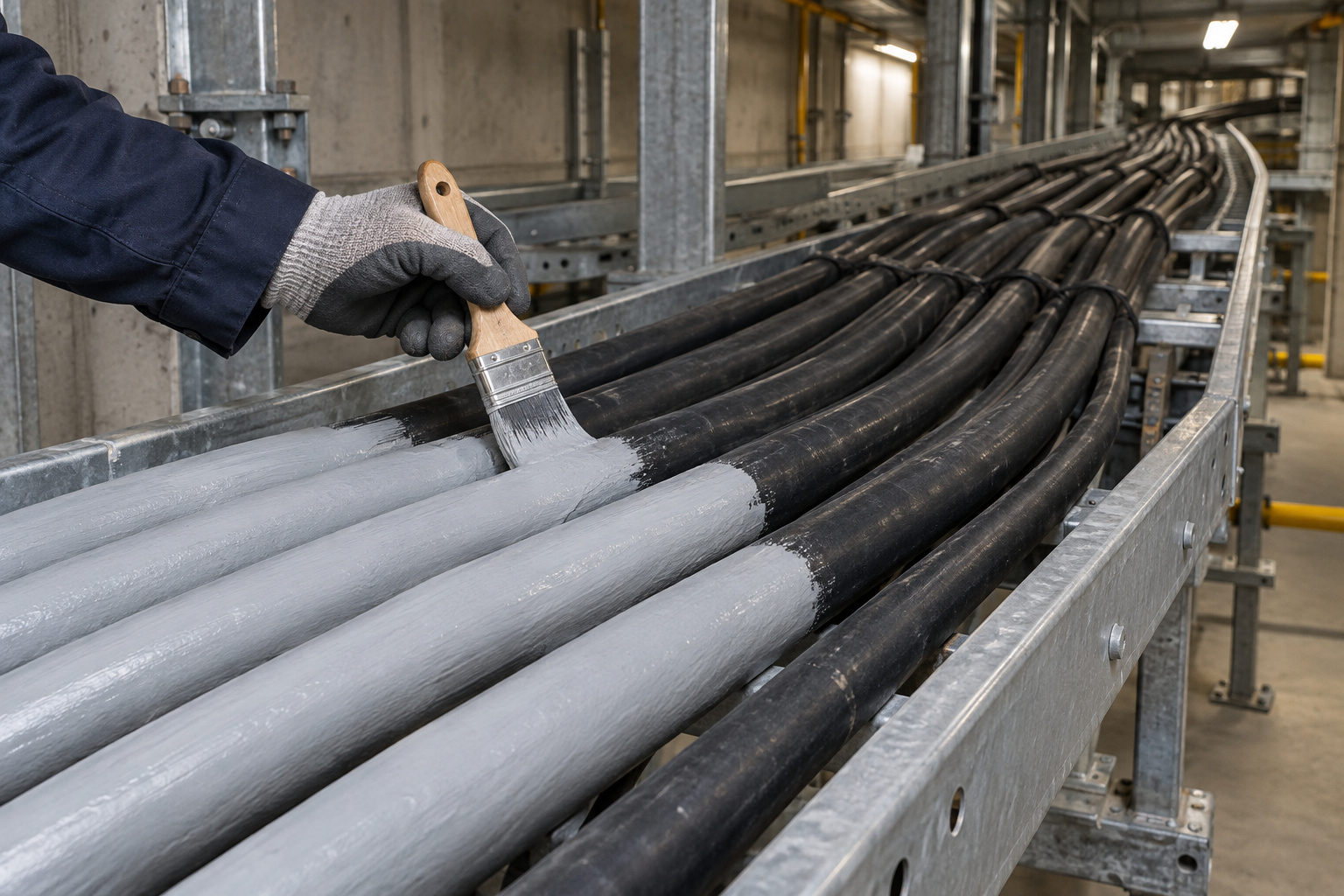

COAT CABLES.
STOP FIRE SPREAD.
STOP FIRE SPREAD.
FIREX EC 43
GENERAL
GENERAL
STOP FLAME SPREAD
Cable trays
240 MIN | 1.6 MM
IEC 60332-3
IEC 60332-3
FIREX EC 43
SURVIVAL
SURVIVAL
KEEP CIRCUITS WORKING
Pumps, alarms, ventilation, exits
NO REDUCTION IN CABLE CAPACITY
IEC 60331-21
750°C / 240 MIN + 15 MIN COOLING
750°C / 240 MIN + 15 MIN COOLING
IS 17505-1
950°C / 180 MIN
950°C / 180 MIN
FIREX EC 7034
STOP RODENT BITES
Small cables + EC 43 topcoat
General / Survival | 0.5 mm topcoat
General / Survival | 0.5 mm topcoat
ONE BITE CAN START A FIRE
19 BITES TO ZERO
RDSO/SPN/204
RDSO/SPN/204
120 MIN FIRE TEST
IEC 60332-3-22 CAT A
IEC 60332-3-22 CAT A
FLAME-SPREAD CONTROL IS NOT CIRCUIT SURVIVAL.
FM 3971 | FLAME-SPREAD COATINGS
EC 43 SURVIVAL | IEC 60331-21
CIRCUIT SURVIVAL
TESTED XLPE 4-CORE 70 SQ MM
6 MINUTES DEAD. 240 MINUTES ALIVE.
STANDARD XLPE
6 MIN | CIRCUIT DEAD
FR-LS XLPE
7 MIN | CIRCUIT DEAD
+ EC 43 SURVIVAL | 1.6 MM
WHEN THE CIRCUIT DIES
THE SHUTDOWN TO REPLACE FIRE-DAMAGED CABLES
COSTS FAR MORE THAN THE CABLES.
COSTS FAR MORE THAN THE CABLES.
PRODUCTION
LOSS
LOSS
HUMAN INJURY
RISK
RISK
CABLE
REPLACEMENT
REPLACEMENT
LONG BUSINESS
DISRUPTION
DISRUPTION
03
OPENINGS
SEAL OPENINGS. COAT CABLES.

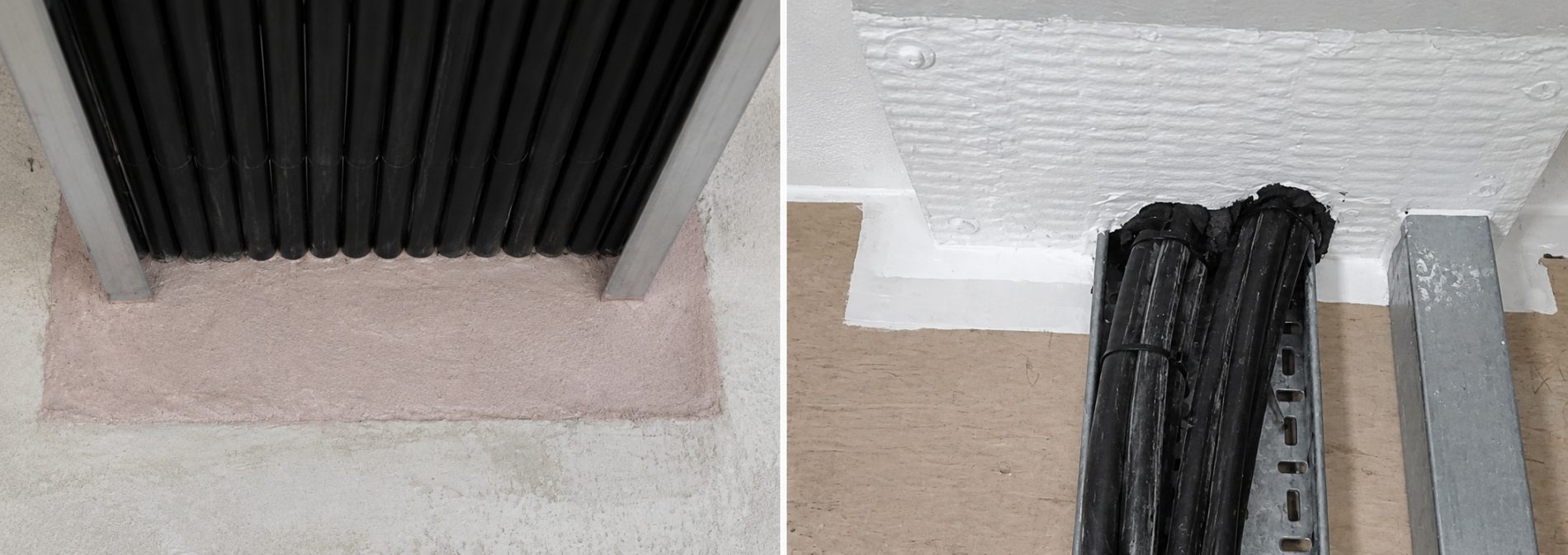

SEAL WALLS + FLOORS.
BLOCK FIRE + SMOKE.
BLOCK FIRE + SMOKE.
FM 71 MORTAR
SEAL FAST.
REOPEN WHEN NEEDED.
REOPEN WHEN NEEDED.
FB 250 / HYBRID FIRESTOP
FIREX FM 71
STRONG. LIGHT. ECONOMICAL.
Load-bearing walls / floors
75 MM | 2 HOURS
FIREX FB 250
NO WET WORK
Near live equipment.
Running plants / data halls /
repairs
Running plants / data halls /
repairs
100 MM | 2 HOURS
FM 71 + FB 250
FAST. STRONG. REOPENABLE.
Hybrid firestop.
For future cable changes.
For future cable changes.
100 MM | 2 HOURS
COAT CABLES THROUGH SEALS
EC 43 | 1 FT INCLUDED
IEC 60332-3
TESTED SYSTEMS
CSIR-CBRI ROORKEE | IS 12458 | IS 17505-1 | IEC 60331-21 | IEC 60332-3 | IEC 60332-3-22 CAT A | RDSO/SPN/204
LEGAL EXPOSURE: FIRE DEATH CAN LEAD TO CRIMINAL ACTION.
ONE SYSTEM. ONE SOURCE.
ONE ACCOUNTABLE PARTNER.
REQUEST A SITE SURVEY
sales@stanvac.com | +91 85271 99811 | stanvac.com
