PCO
WORLD'S FIRST
COMPLETE ELECTRICAL
FIRE DEFENCE
FIRE DOES NOT STAY
IN THE PANEL.
Fire can start in panels,
travel along cable highways and enter
other areas through unsealed openings.
THE SOURCE
PANELS
PANEL CATCHES FIRE.
SMOKE BUILDS.
THE HIGHWAYS
CABLES
CABLES CARRY FIRE.
INSULATION IS FUEL.
THE GATES
OPENINGS
FIRE + SMOKE CROSS
UNSEALED OPENINGS
HOURS OF FIRE.
MONTHS OF DISRUPTION.
Smoke threatens lives.
Failed circuits stop critical systems.
THE SOURCE
PANELS
01
Contain fire at the source. Protect panel components.
PANEL PRODUCTS / FBS 73 + DC 52 + 931B

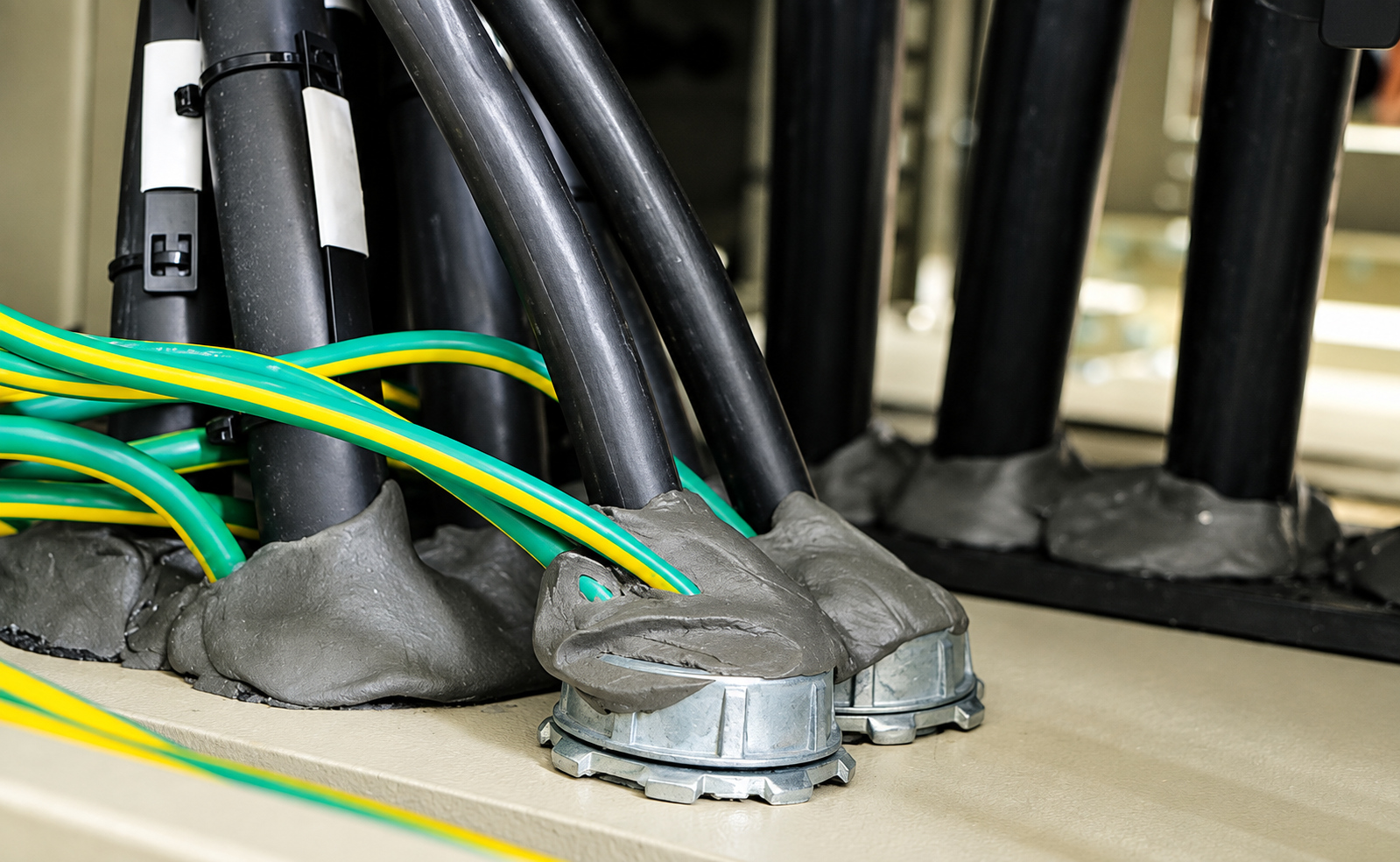

GAPS SEALED AROUND
CABLE ENTRIES
FIRE-SEALANT PUTTY
FIREX FBS 73
SEAL PANEL GAPS.
BLOCK FIRE + SMOKE.
Flexible, reopenable putty for
panel gaps and cable entries.
Helps block fire and smoke;
keeps out dust, moisture,
insects and rodents.
UP TO 2 HOURS
IS 12458

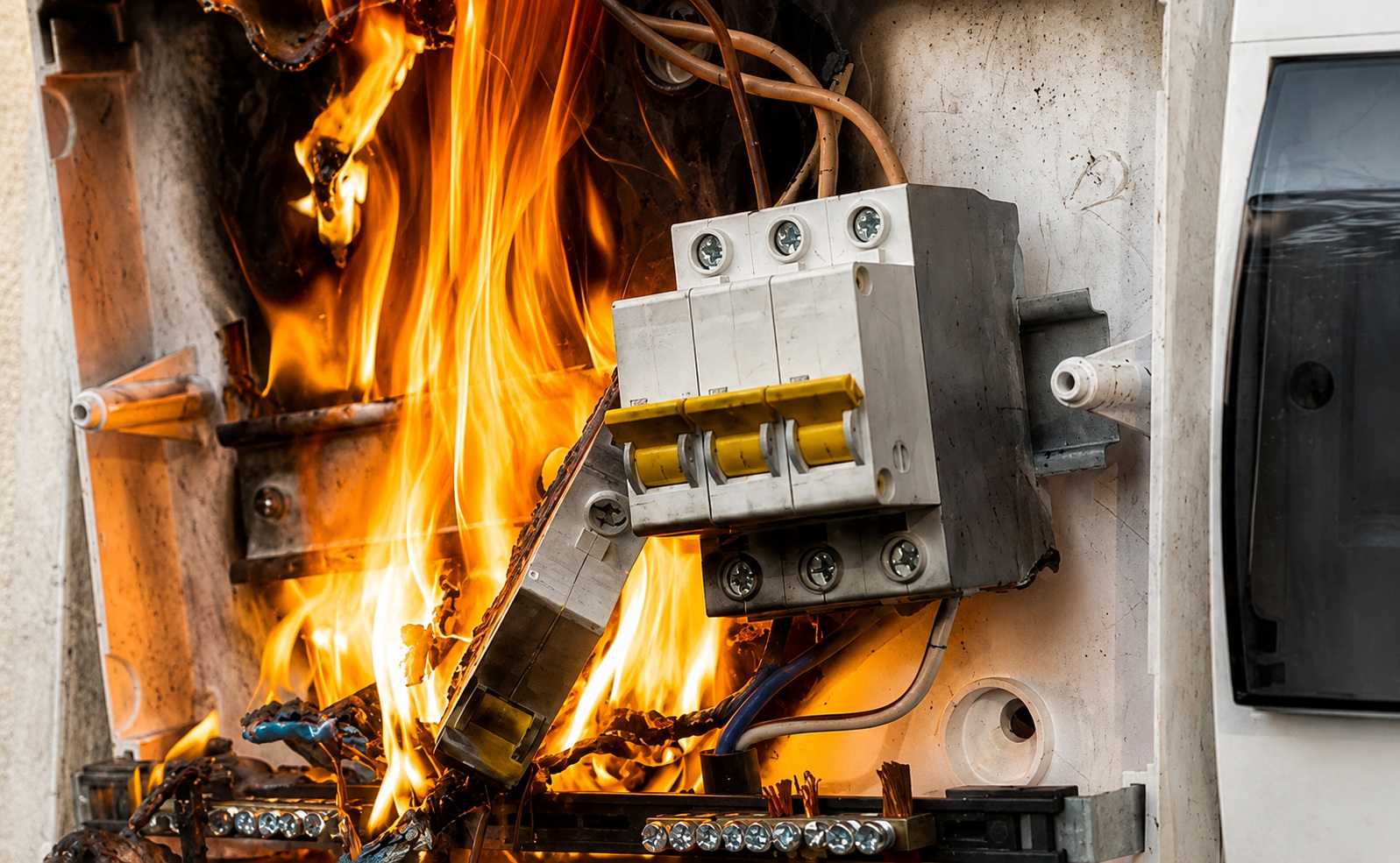

UNPROTECTED
PANEL FIRE
INTUMESCENT PANEL COATING
FIREX DC 52
STOP PANEL PAINT
FEEDING FIRE.
Forms an intumescent barrier
to limit fire growth and shield
components from heat.
INDIA'S FIRST
PANEL FIRE-BARRIER COATING
INTUMESCENT ELECTRICAL INSULATION
931B STRIPPEX - INTUMESCENT
INSULATE TAPED JOINTS. LIMIT FIRE SPREAD.

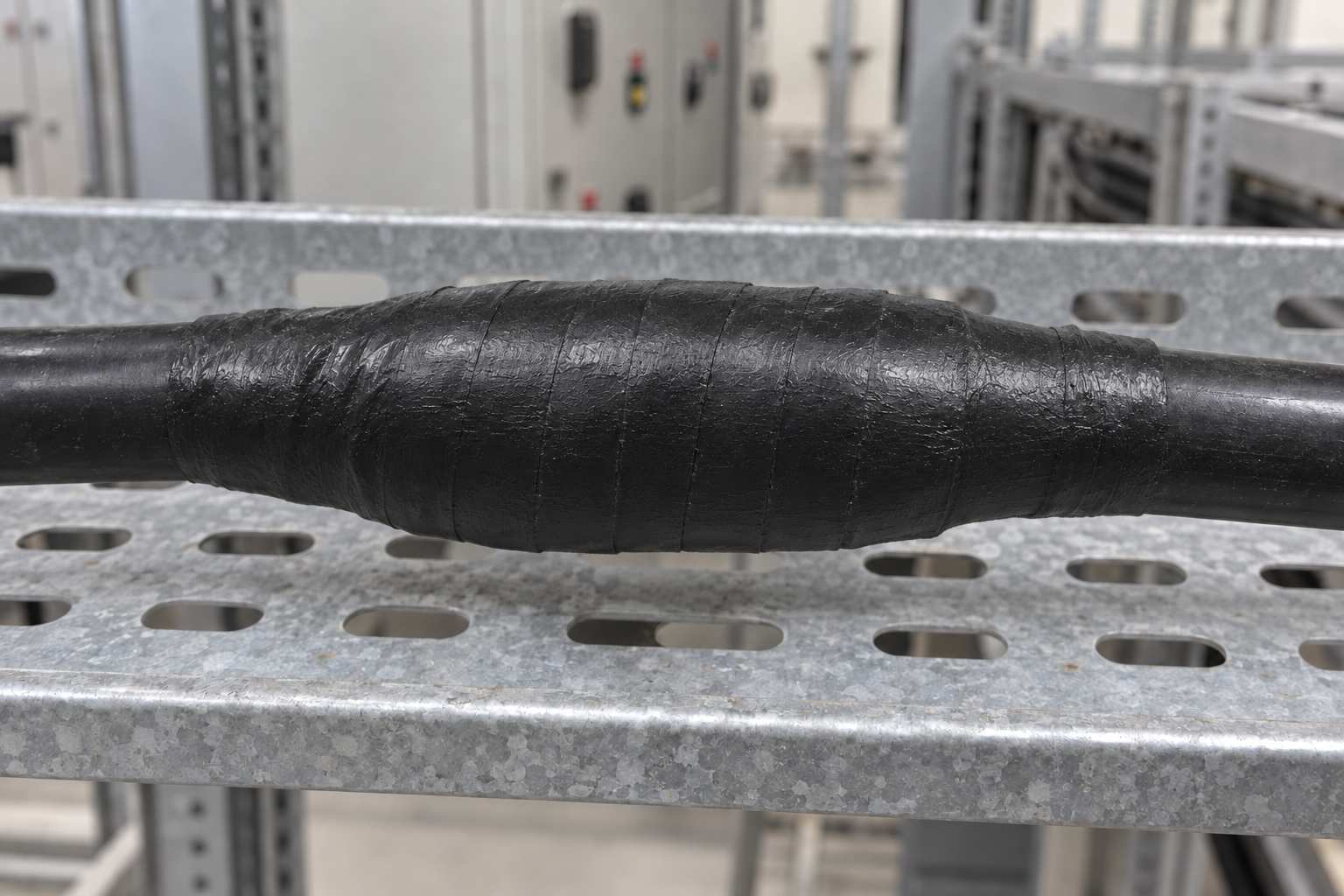

REPAIRED & COATED JOINTS
Taped connections, cable joints,
busbar and lug joints.
Taped joints and cracked cable
joints can cause breakdowns and
fires. 931B protects repaired
joints with insulation, dust and
water repellency, and fire-spread
resistance.
Base + top coat combo. For HT: use with 955 SL tape.
MCCs · DBs · Panels · Junction boxes · Machine cabinets
Seal specified gaps. Retain required ventilation and electrical clearances.
THE HIGHWAYS
CABLES
02
Limit flame spread. Keep critical circuits working.
FIRE-DAMAGED CABLES
COSTLY REPLACEMENT.
COSTLIER SHUTDOWN.
COAT EXISTING CABLES
Add protection along the cable
route.
INSULATION FAILS. CONDUCTORS SHORT. CIRCUITS FAIL.
CHOOSE THE CABLE PROTECTION
EC 43 GENERAL
Limit flame spread along cables.
EC 43 SURVIVAL
Keep critical circuits working in fire.
EC 7034
Add rodent protection where needed.
FLAME-SPREAD CONTROL
EC 43
GENERAL
LIMIT FIRE TRAVELLING
ALONG CABLES.
240 MINUTES
FLAME-SPREAD TEST
IEC 60332-3 | 1.6 mm
For cable trays and existing cable routes.
At firestops: EC 43 cable coating through the seal, 1 ft included.
CIRCUIT SURVIVAL
EC 43 SURVIVAL
KEEP CRITICAL CIRCUITS WORKING IN FIRE.
Pumps · Alarms · Ventilation · Escape-route lighting
6 MINUTES DEAD. 240 MINUTES ALIVE.
Tested XLPE cable: 4-core, 70 sq mm
STANDARD XLPE
6
MINUTES
CIRCUIT DEAD
FR-LS XLPE
7
MINUTES
CIRCUIT DEAD
+ EC 43 SURVIVAL
240
MINUTES
CIRCUIT ALIVE
NO REDUCTION IN CABLE CAPACITY
Flame-spread control is not circuit survival.
FM 3971: flame-spread coatings. IEC 60331-21: circuit survival.
EC 43 Survival build: 1.6 mm. Results apply to the tested cable and coating
system; request the matching report.
THE SHUTDOWN TO REPLACE BURNT CABLES
CAN COST FAR MORE THAN THE CABLES.
RODENT + FLAME-SPREAD PROTECTION
FIREX EC 7034

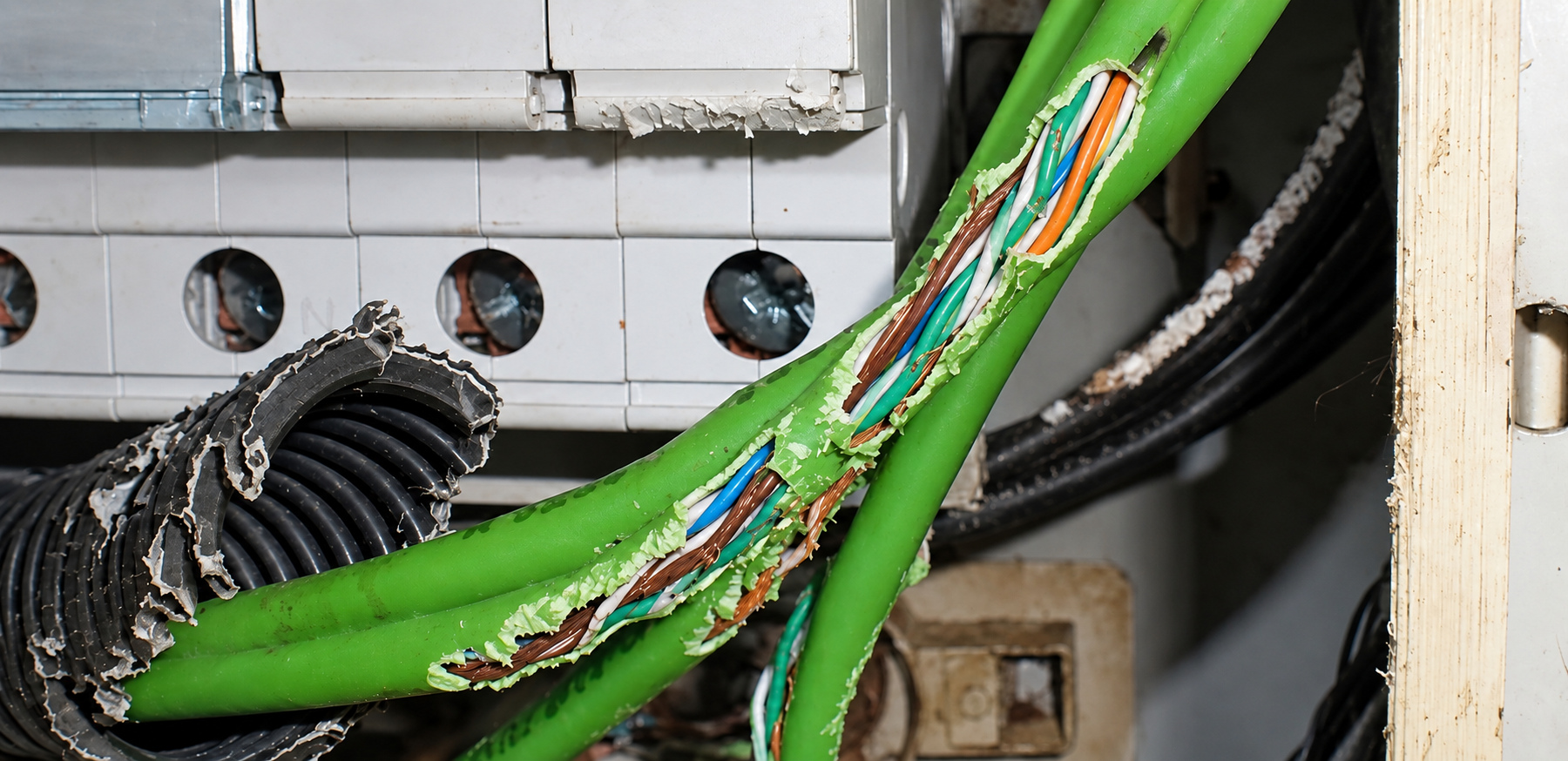

ONE BITE CAN START A FIRE.
Protect the cable sheath.
TRANSLUCENT.
FLEXIBLE.
19 BITES TO ZERO
30-day rodent test
RDSO/SPN/204
120-MINUTE FLAME TEST
IEC 60332-3-22, Category A
0.5 mm topcoat over compatible EC 43 General / Survival.
The 120-minute rating is for the tested 1.5 mm direct-to-cable build; it does not
automatically apply to a combined coating system.
THE GATES
OPENINGS
03
Limit fire and smoke. Protect the next area.
OPENING SYSTEMS / FM 71 + FB 250 + HYBRID
SEAL WALLS + FLOORS.
BLOCK FIRE + SMOKE.

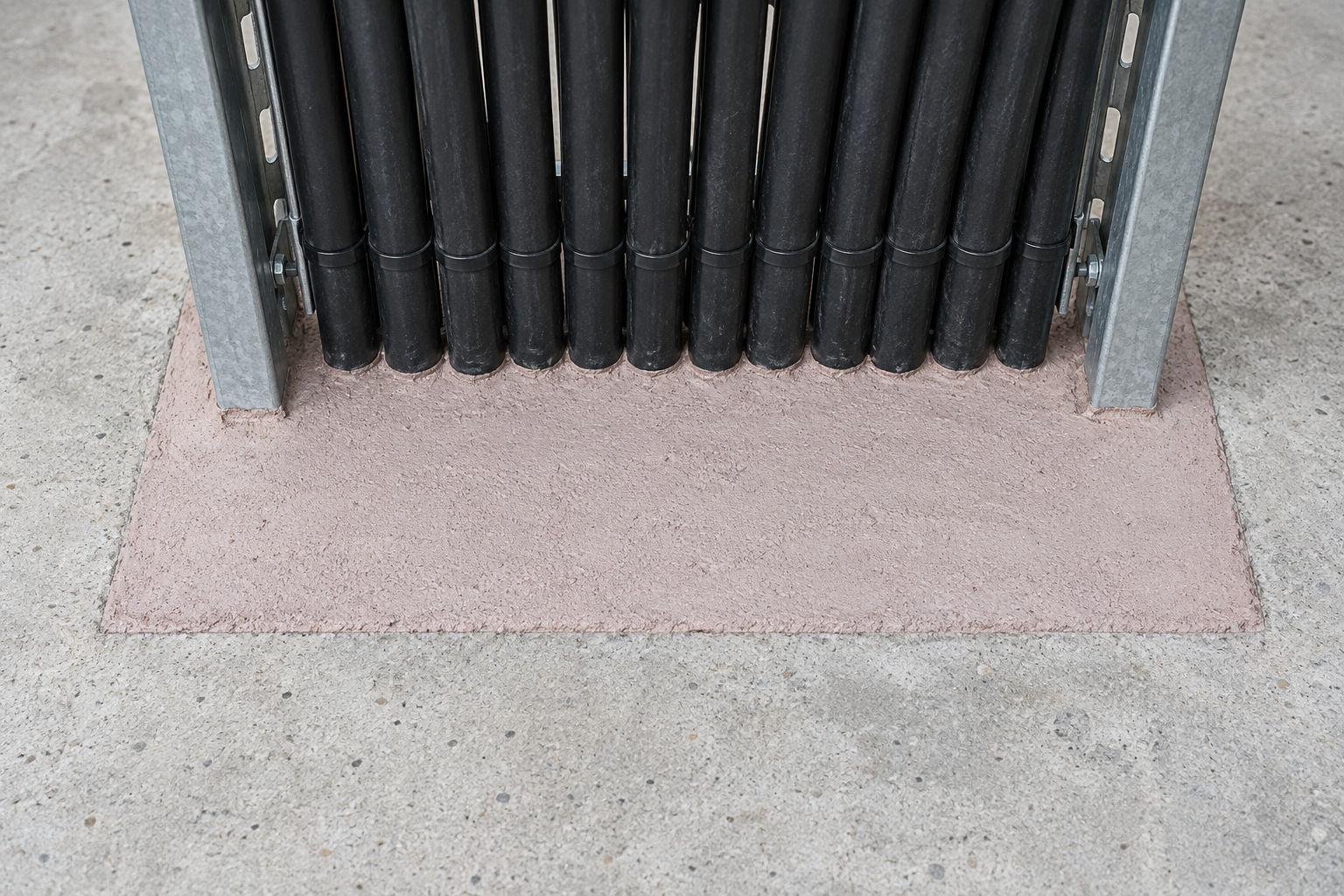

FIRESTOP MORTAR
FIREX FM 71
STRONG. LIGHT. ECONOMICAL.
Seal wall and floor openings.
Load-bearing firestop seals.
75 mm / 2 HOURS
SEAL FAST.
REOPEN WHEN NEEDED.
DRY FIRESTOP
FIREX FB 250
NO WET WORK.
For running plants, data halls
and repairs. Reopen for cable
changes.
100 mm / 2 HOURS
HYBRID FIRESTOP
FM 71 + FB 250
FAST. STRONG. REOPENABLE.
Combine mortar and board. Allow for future cable changes.
100 mm / 2 HOURS
Fire ratings apply to the tested opening, services, seal depth and installation detail.
MAP THE FIRE ROUTE
BEFORE THE FIRE DOES.
PANELS CABLES OPENINGS
ONE SYSTEM. ONE SOURCE. ONE ACCOUNTABLE PARTNER.
START WITH ONE PRIORITY AREA.
Which panel, cable route or opening should we protect first?
Confirm the location, quantity and target completion date.
Get the recommended system, matching test reports
and quotation.
TESTED SYSTEMS
CSIR-CBRI Roorkee · IS 12458 · IS 17505-1 · IEC 60331-21
IEC 60332-3 · IEC 60332-3-22 Category A · RDSO/SPN/204
LEGAL EXPOSURE: FIRE DEATH CAN LEAD TO CRIMINAL ACTION.
STANVAC CHEMICALS (INDIA) LTD
Plot 551, Pace City-II, Sector 37, Gurugram, Haryana 122001
Keeping People Safe. Keeping Plants Running.
stanvac.com
