APPLICATION GUIDE · OCTOBER 2026
MCC ROOMS &
MAIN POWER SUBSTATIONS
What happens to your production
if either one goes down?
INDIA’S FIRST
16 STANVAC SOLUTIONS. ONE PROTECTION PLAN.

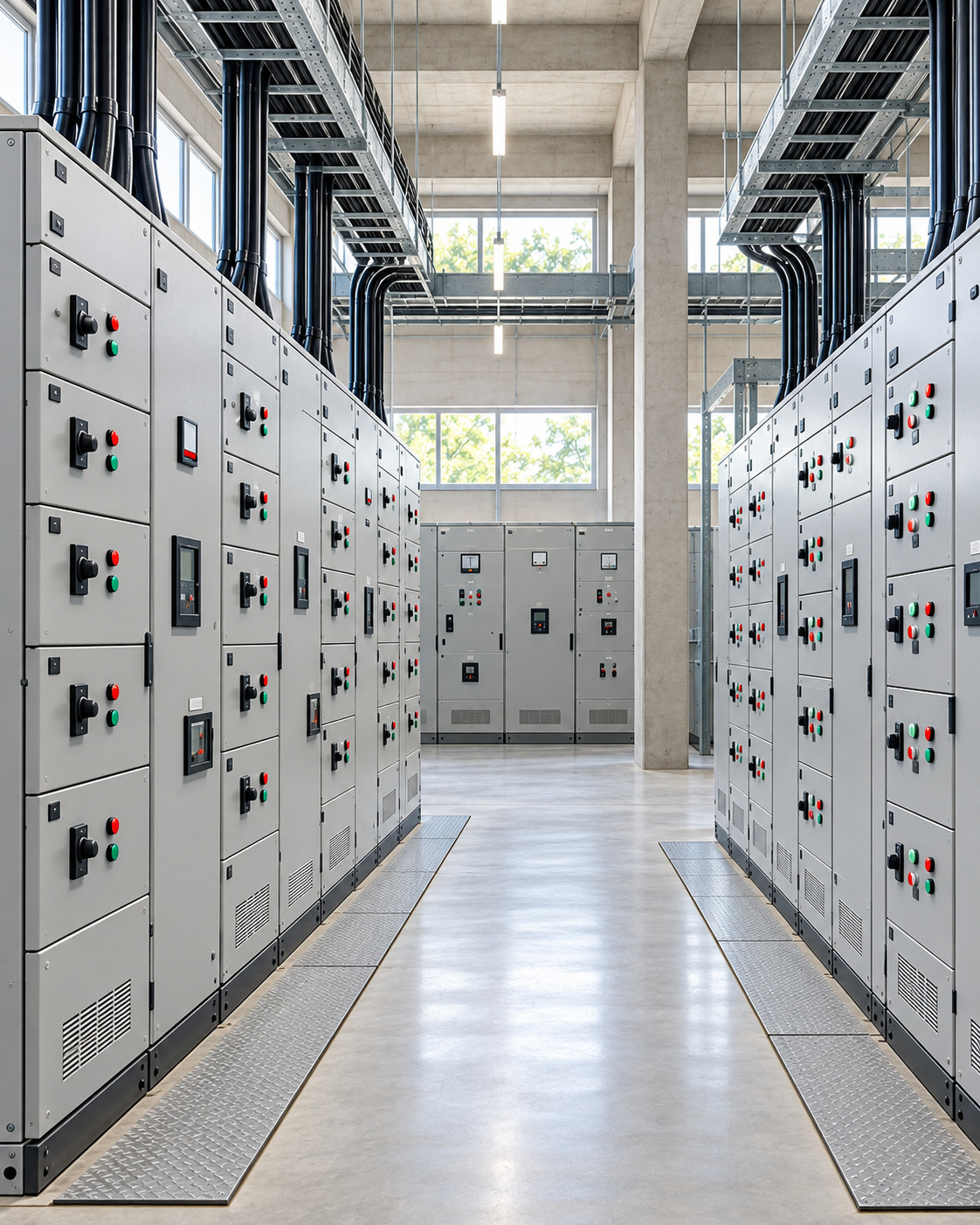

MCC ROOM
A fault can stop motors and production
lines.

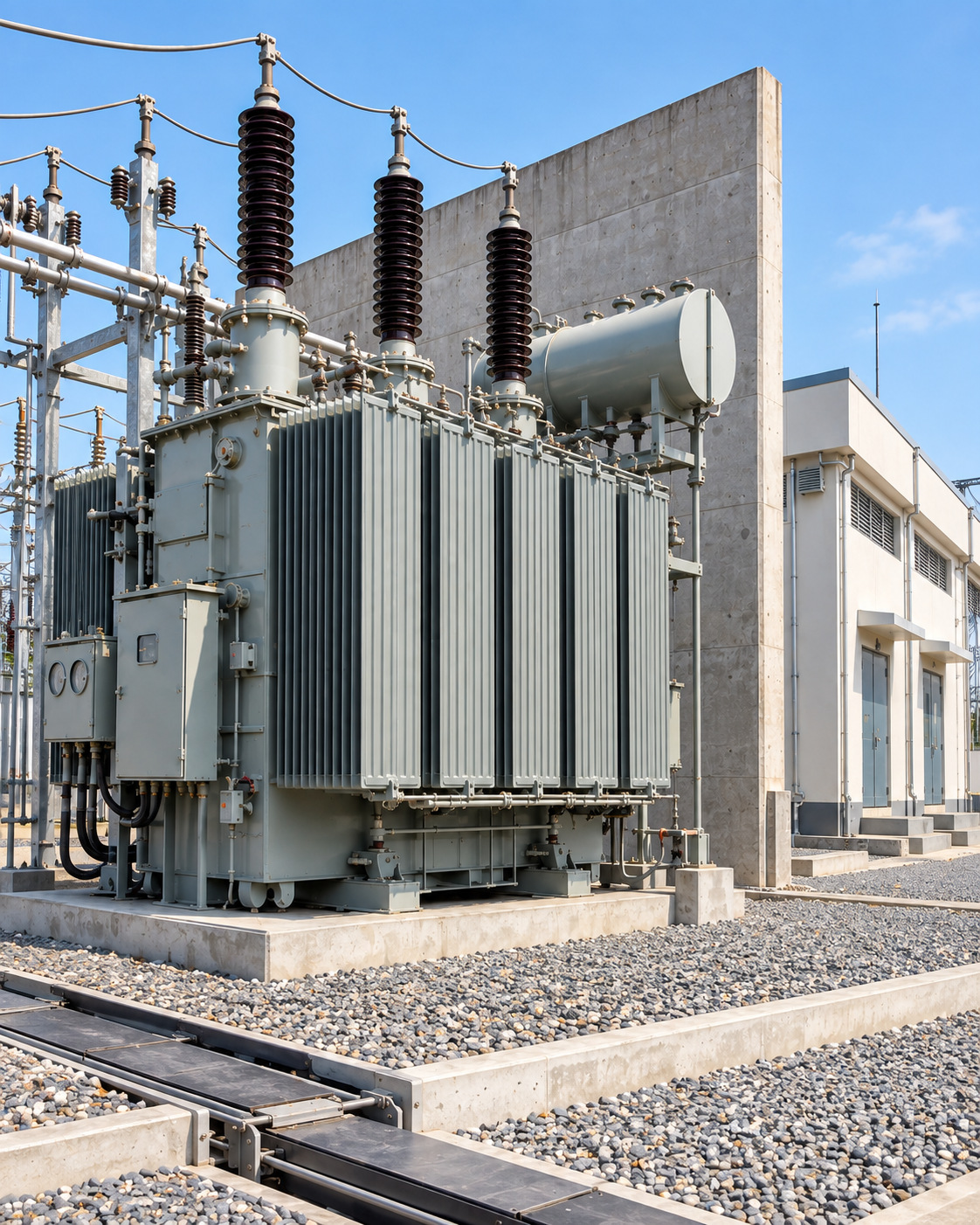

POWER SUBSTATION
A fault can cut power across the plant.
CRORES IN EQUIPMENT. FAR MORE AT STAKE.
Major installations can hold equipment worth crores. Shutdown losses can be
far greater. Human life is irreplaceable.
The shutdown can outlast the fire.
Includes upcoming FP 61 + EM 79.
COMMON APPLICATIONS
Protect the panel.
MCC cabinets · substation switchgear · control and auxiliary cabinets
01

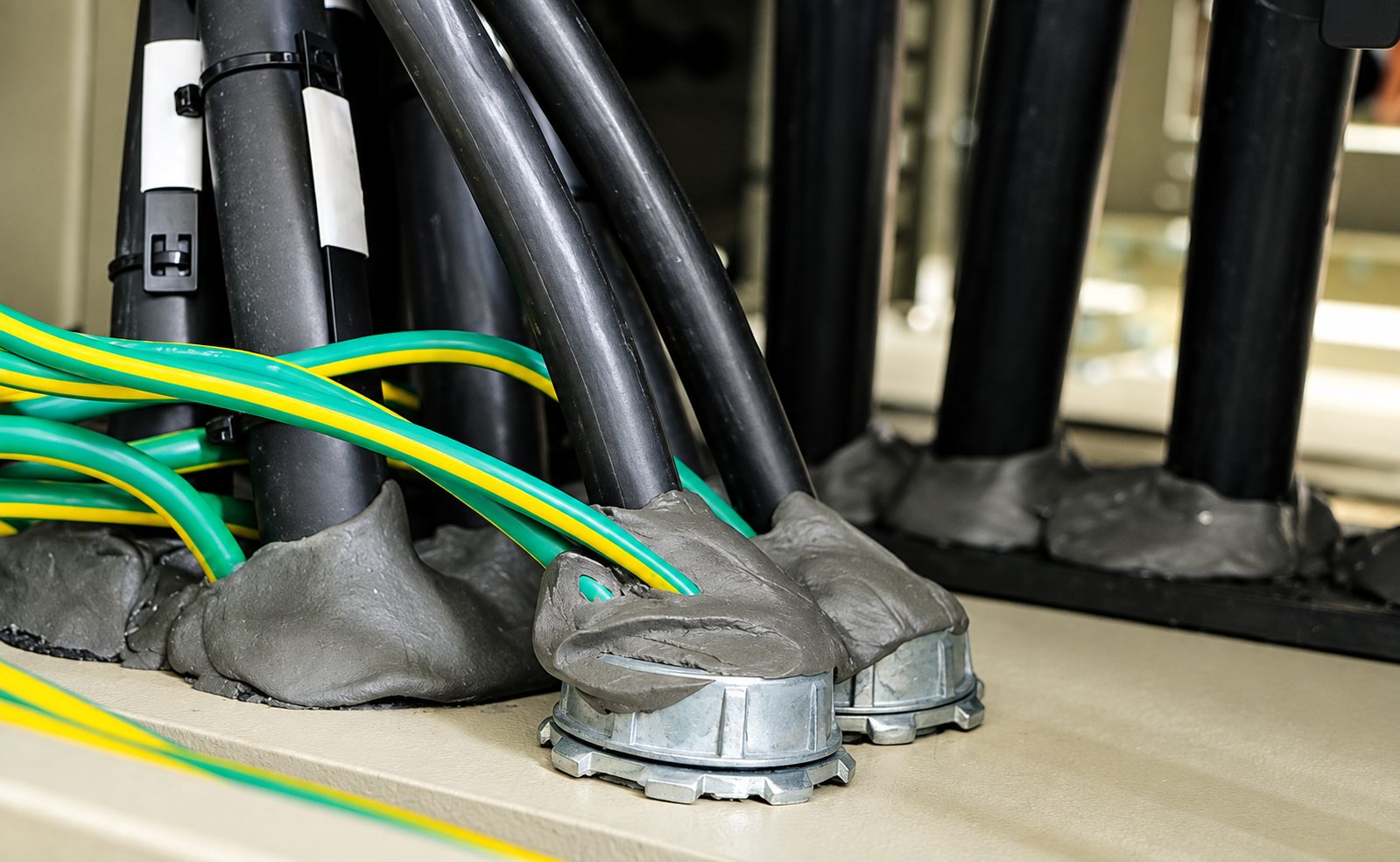

FIREX FBS 73
SEAL PANEL GAPS.
REDUCE FIRE RISK.
Flexible,
re-enterable sealing
for cable entries.
Keeps out dust,
moisture and pests;
limits fire and smoke
passage.
02

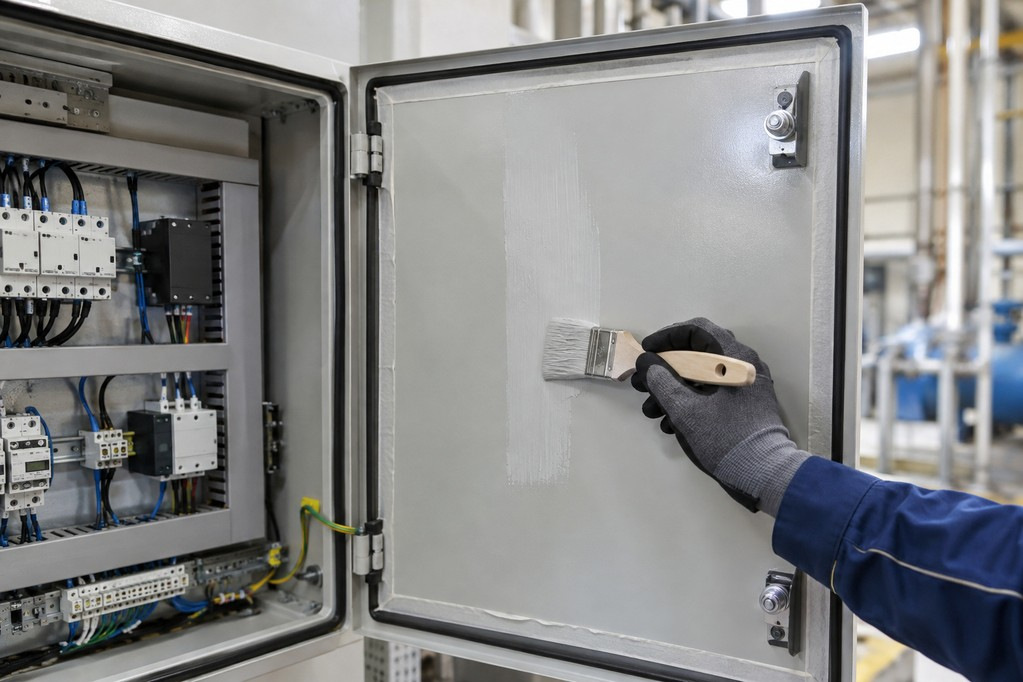

FIREX DC 52
STOP PANEL PAINT
FEEDING THE FIRE.
Internal panel paint can
fuel fire.
DC 52 forms an
intumescent barrier,
limiting fire growth
and shielding
components from heat.
SEAL GAPS. KEEP VENTILATION CLEAR.
Preserve ventilation, arc-pressure relief, electrical clearances, access and earthing.
COMMON APPLICATIONS
Secure joints & contacts.
Taped connections · cable joints · busbar joints · isolator jaws
03

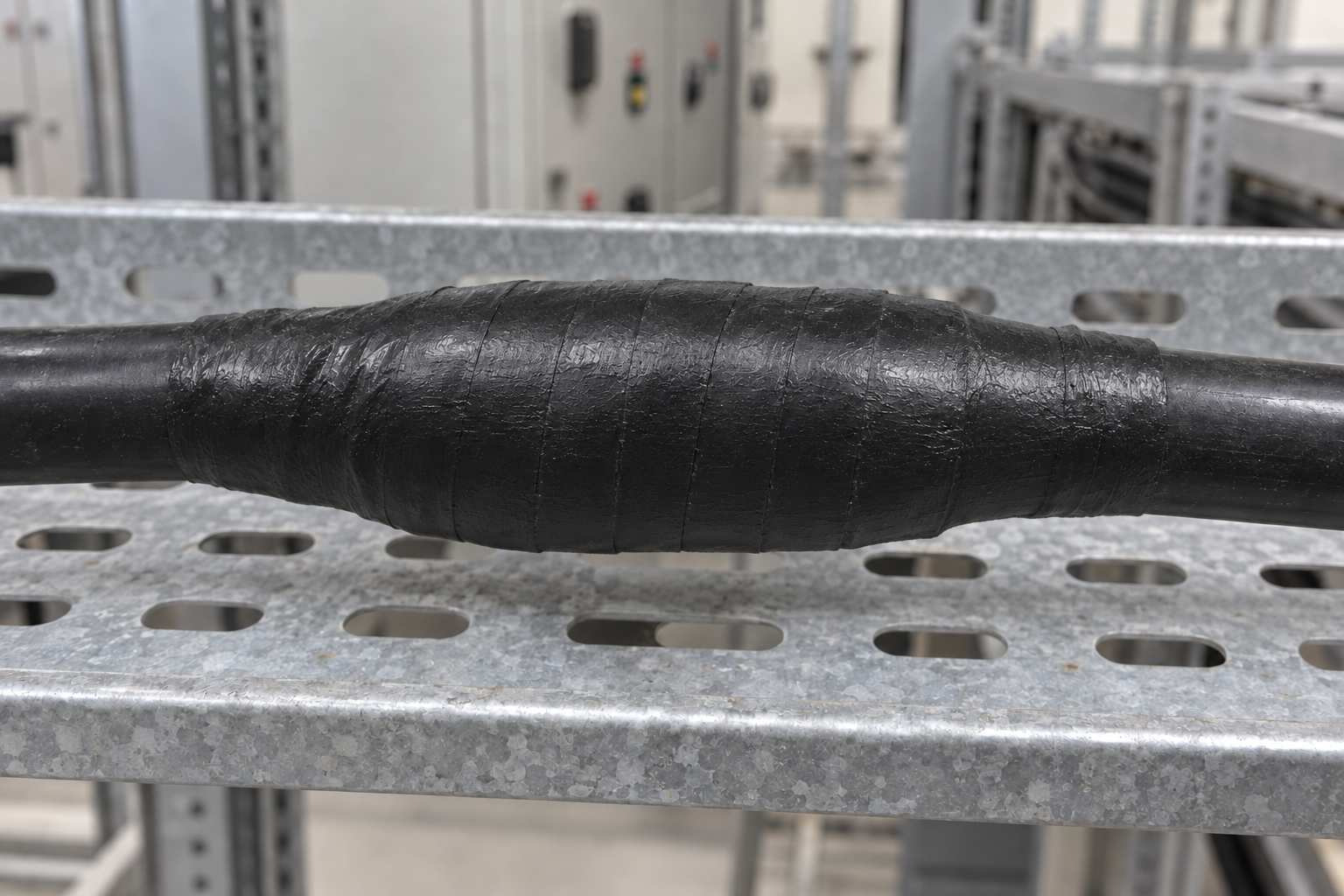

931B STRIPPEX - INTUMESCENT
INSULATE TAPED JOINTS.
CUT FIRE & FAILURE RISK.
Rubberised SHP
base + topcoat for
taped connections,
cable joints, busbar
joints and lug exteriors.
Repels dust and
water.
HT joints: combine with
955 SL self-fusing tape.
04

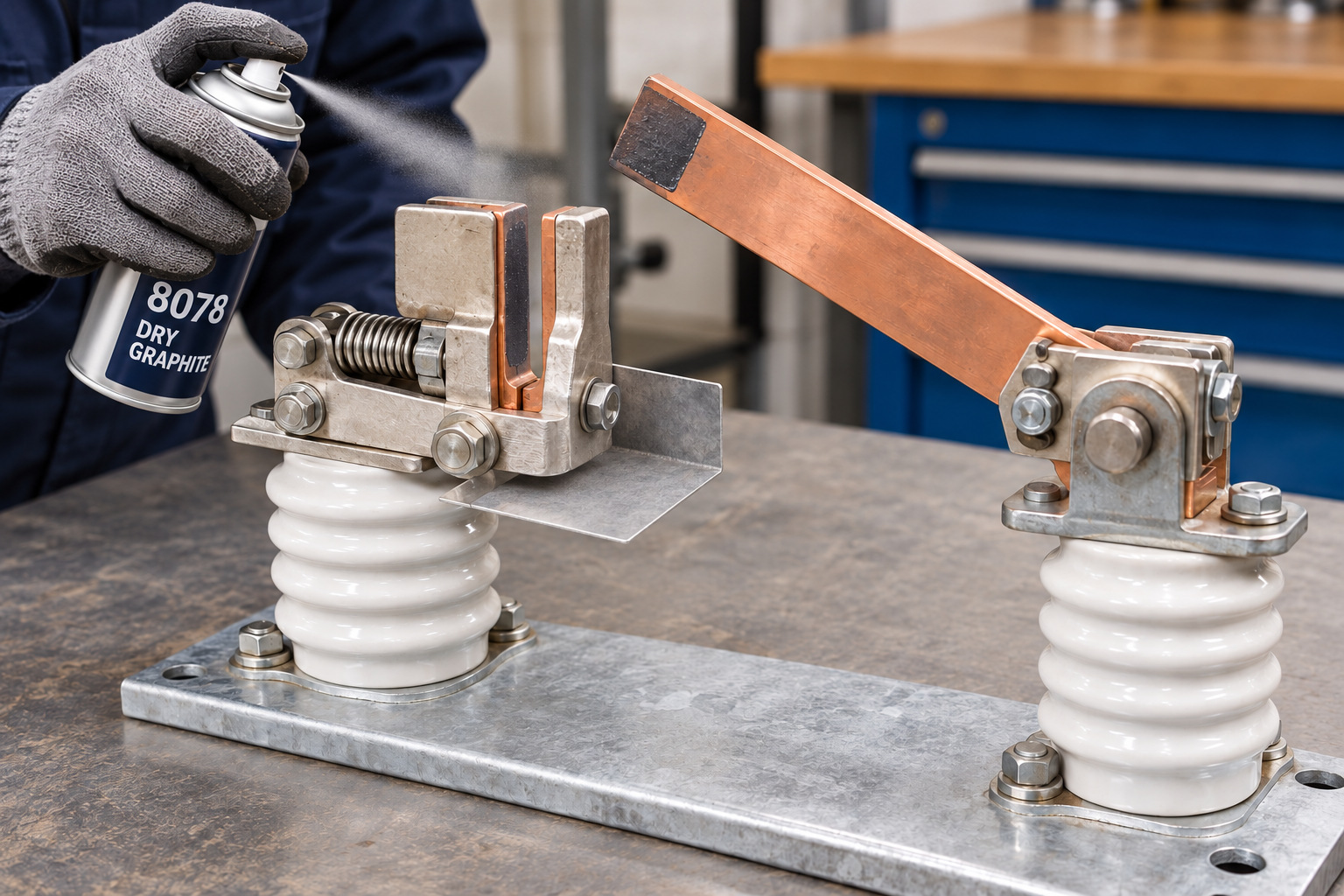

8078 DGCS - DRY GRAPHITE CONDUCTIVE
SEALANT
PREVENT ISOLATOR
JAW JAMMING.
RESIST CORROSION.
Dry conductive
graphite for busbar
isolator jaw
contacts.
Resists corrosion;
reduces jamming,
overheating and
arcing for reliable
switching.
Isolate first. Keep
insulators clear. Follow
equipment-maker contact
specifications.
05
SL-ECG #2 ELECTROTHERM
PREVENT OVERHEATING.
REDUCE POWER LOSS.
Protects bolted
busbar joints against
corrosion and
maintains efficient
current flow.
Helps reduce power
lost as heat,
overheating and
breakdown risk.
INSULATE EXTERIORS. PROTECT CONTACT FACES.
931B: joint exteriors. 8078: jaws. SL-ECG #2: busbar joints.
Correct electrical defects and verify joint tightness first.
COMMON APPLICATIONS
Protect wiring & cable routes.
Small panel wires · cable trays · cable basements · critical plant circuits
06

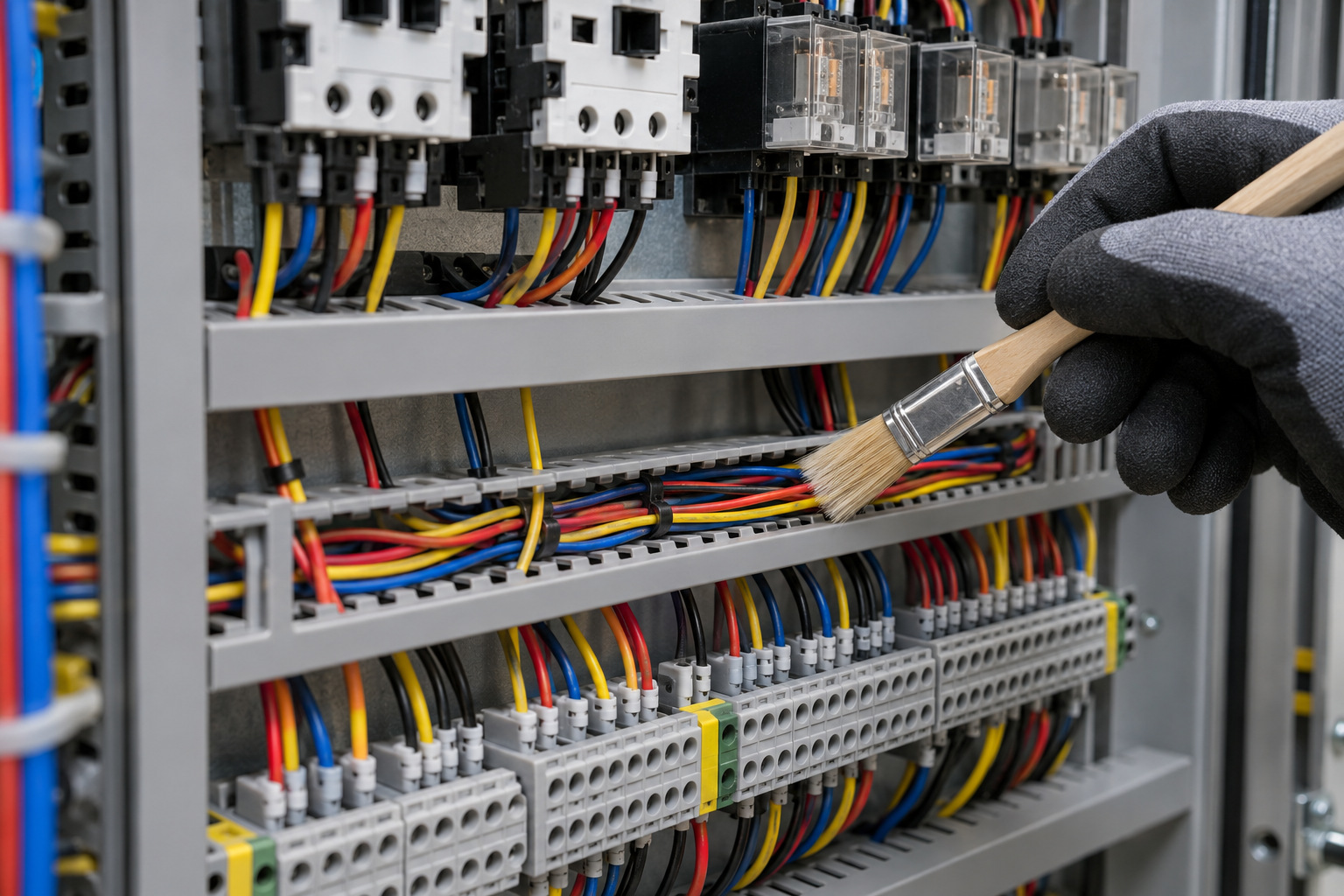

FIREX 7034
PROTECT THIN WIRES.
LIMIT EARLY FIRE SPREAD.
Unprotected thin
wires can ignite and
spread fire into larger
cables.
7034 resists flame
spread and rodent
bites. Wire colours
stay visible.
30-day rodent test:
19 bites uncoated; 0
coated.
RDSO/SPN/204 Annex. G.
120 min flame-spread:
IEC 60332-3-22 Cat. A
CBRI; 1.5 mm on cable.

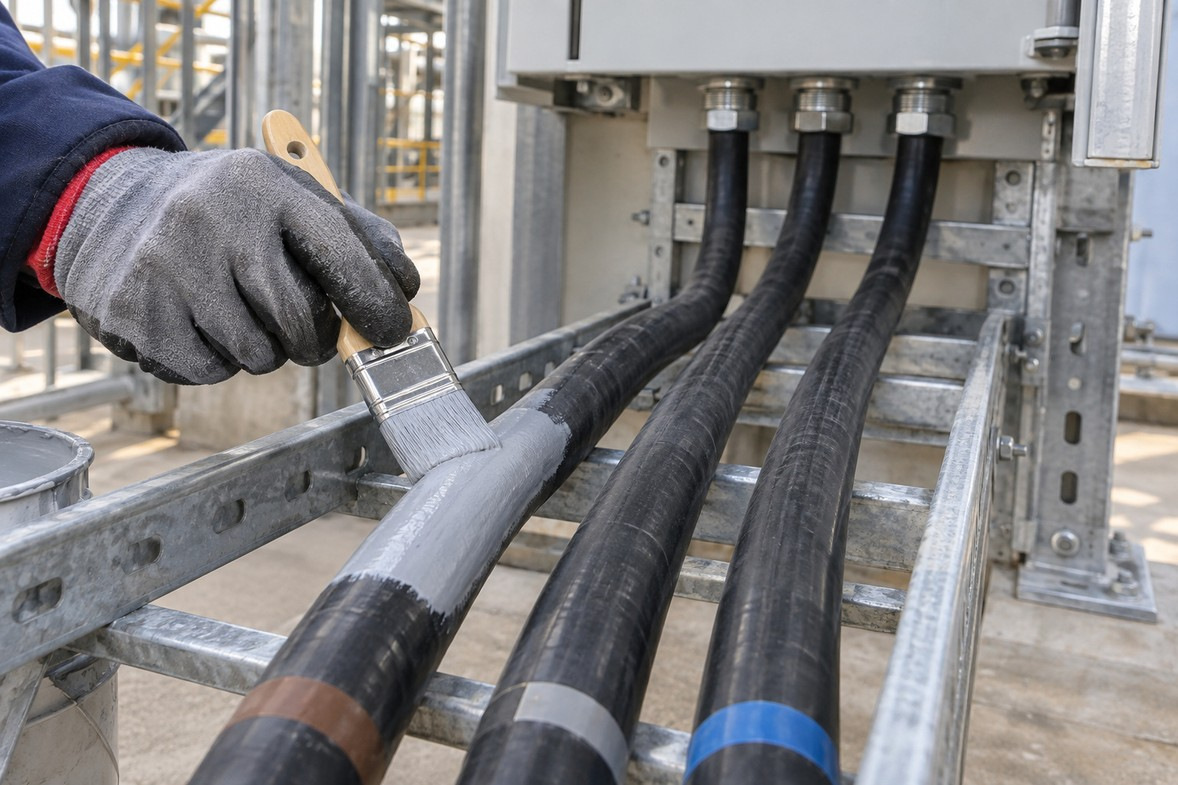

07
FIREX EC 43
LIMIT FIRE SPREAD.
KEEP CIRCUITS WORKING.
GENERAL: restrict
flame spread along
cables.
SURVIVAL: sustain
critical circuits
through fire in the
tested
cable-and-coating
system.
BOTH GRADES:
overcoat with 0.5 mm
FIREX 7034 for added
anti-rodent protection.
EC 43 SURVIVAL: TESTED CIRCUIT CONTINUITY.
1.6 mm on XLPE 4-core 70 mm²: 240 min at 750°C + 15 min cooling (IEC 60331-21); 180
min at 950°C (IS 17505-1). Results apply to the tested system; whole-circuit continuity also
needs protected supply, switchgear, joints and supports.
COMMON APPLICATIONS
Close pest gaps. Seal fire paths.
Cable entries · under-panel openings · wall and floor penetrations
08

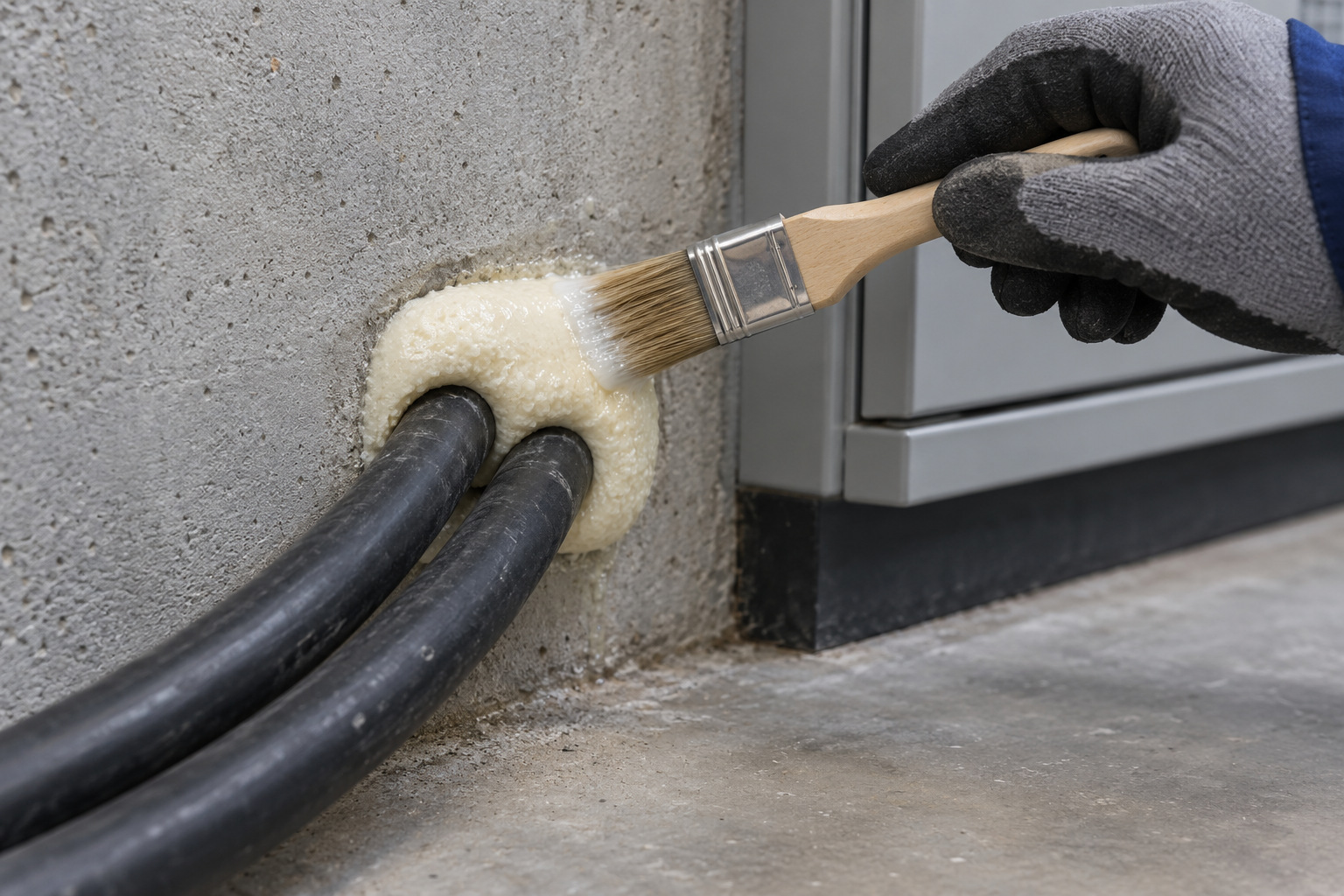

Z201 PUFSEAL + FIREX EC 7034
SEAL PEST GAPS.
RESIST RODENT BITES.
PUFSEAL closes
pest-entry gaps.
The 7034 topcoat
protects cured foam
against rodent bites.
For non-rated gaps.
Not a fire-rated seal.
09

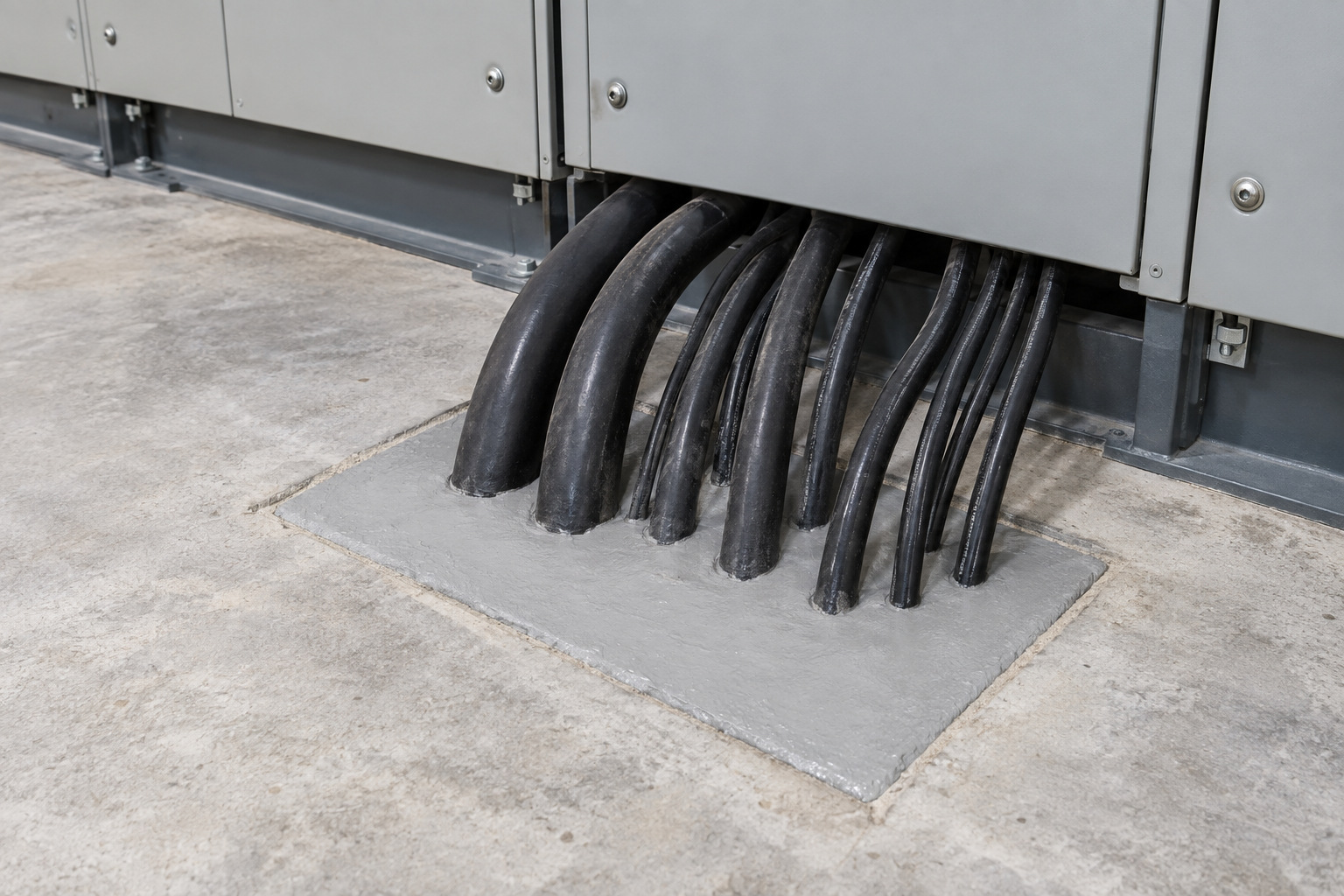

FIREX EM 79
SEAL UNDER-PANEL GAPS.
CLOSE FIRE PATHS.
UPCOMING
Pourable,
self-expanding
firestop mortar for
congested cable
bundles and
under-panel
openings.
Forms the seal in
place.
10

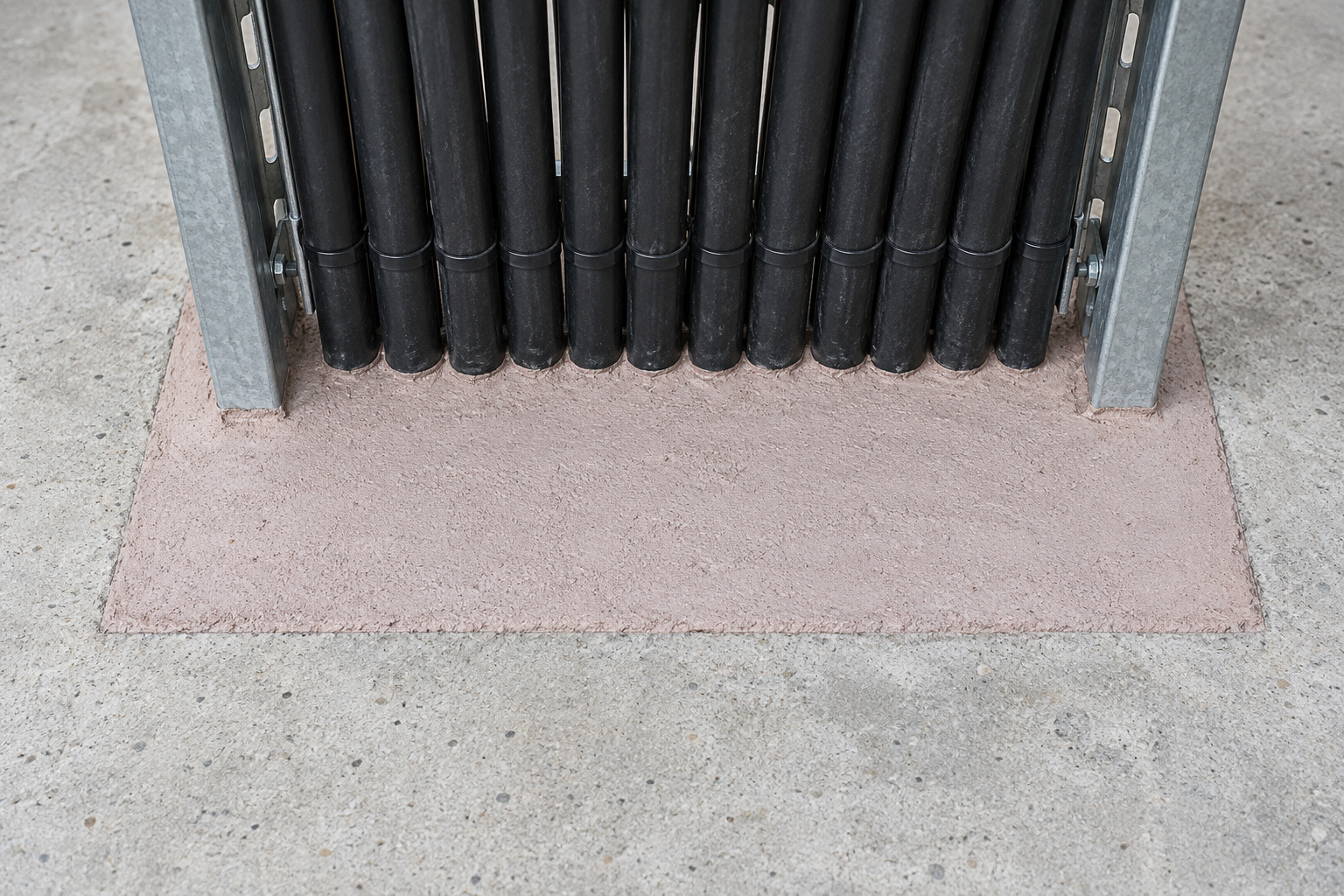

FIREX FM 71 · FB 250
LIMIT FIRE & SMOKE.
PROTECT THE NEXT ROOM.
FM 71: strong
wall/floor mortar
seals.
FB 250: dry barriers,
reopenable for cable
changes.
CLOSE THE FIRE PATH. RESTORE AFTER CABLE CHANGES.
Match the tested opening, services and seal depth. Reinstate the barrier after cable changes.
COMMON APPLICATIONS

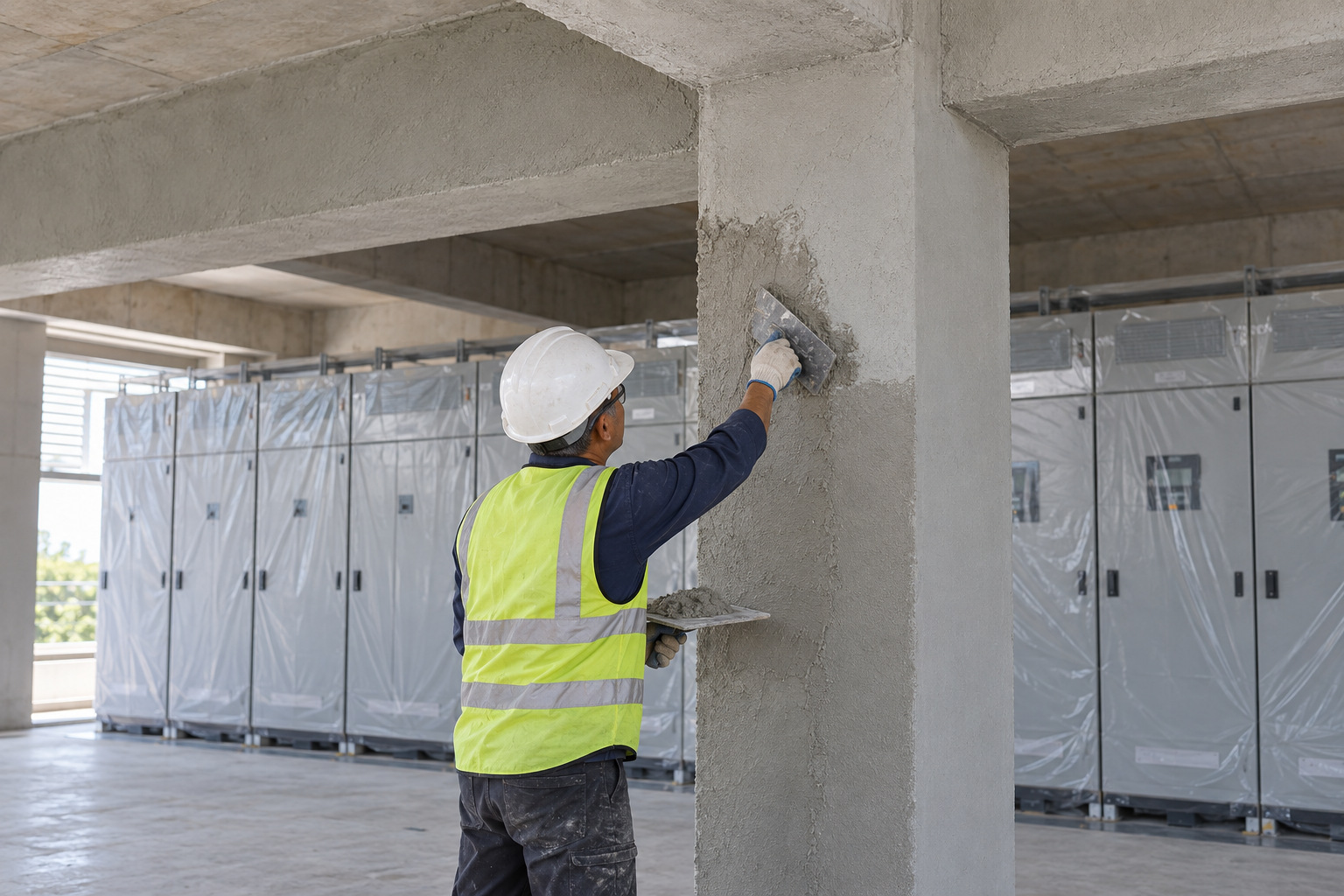

Protect critical RCC members.
RCC columns · beams · slab soffits · engineered RCC supports
ADD FIRE PROTECTION
TO CRITICAL RCC.
FIREX FP 61 FIRE PLASTER
Fire-protective plaster for RCC columns, beams and slab soffits
around essential equipment.
REPAIR DAMAGE. PRESERVE THE ROOM.
750 / 751: rebuild damaged floors and plinth edges.
753: protect exposed RCC against moisture and carbonation.
COMMON APPLICATIONS
Reduce contamination faults.
Insulators · relays · PLC/VFD electronics · control boards
12

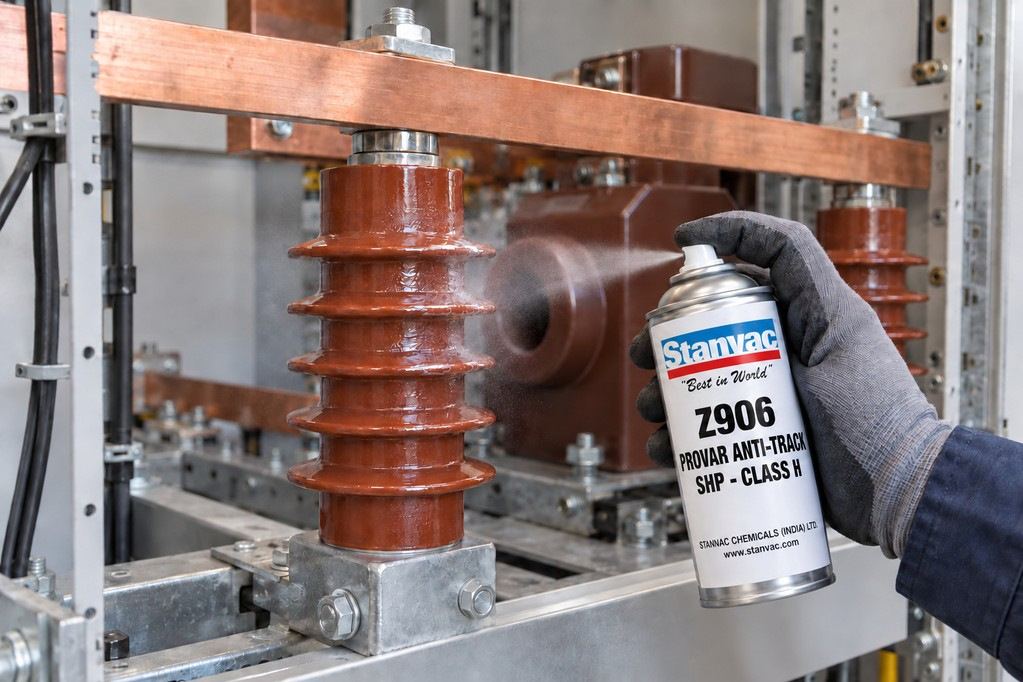

Z906 PROVAR ANTI-TRACK SHP
RESIST TRACKING.
CUT PANEL BREAKDOWNS.
Repels dust and
moisture on
insulators, CTs and PTs.
Reduces tracking and
flashovers; sustains
metering reliability.
13

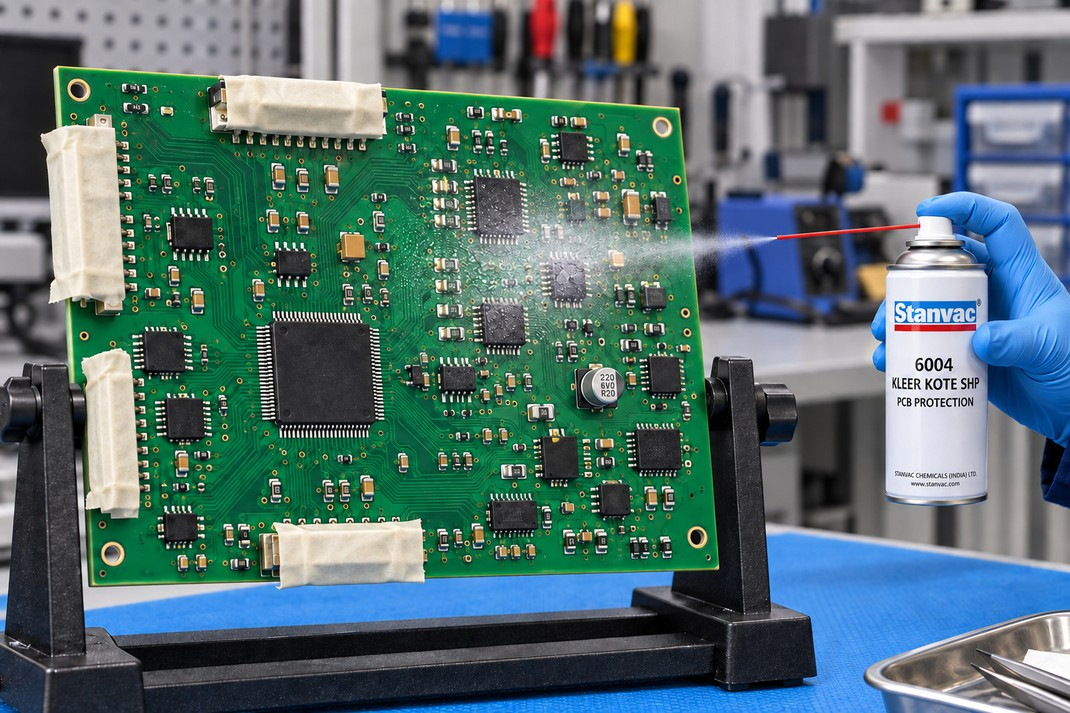

8376 CLEANER + 6004 KLEER KOTE SHP
EXTEND PCB LIFE.
CUT MOISTURE DAMAGE.
Residue-free PCB
cleaning followed by
transparent SHP
protection.
Repels moisture and
dust; reduces leakage
and corrosion.
Match board materials.
Mask contacts,
connectors and
heat-dissipating parts.
CLEAN CONTAMINATION. REDUCE REPEAT FAULTS.
415: isolated contacts. 8376: electronics. 8060: oil/grease. 8070: moisture.
901: approved on-line cleaning. 8480: carbon deposits.
COMMON APPLICATIONS
Protect people & the room.
Operator areas · panel earthing · panel bodies
14

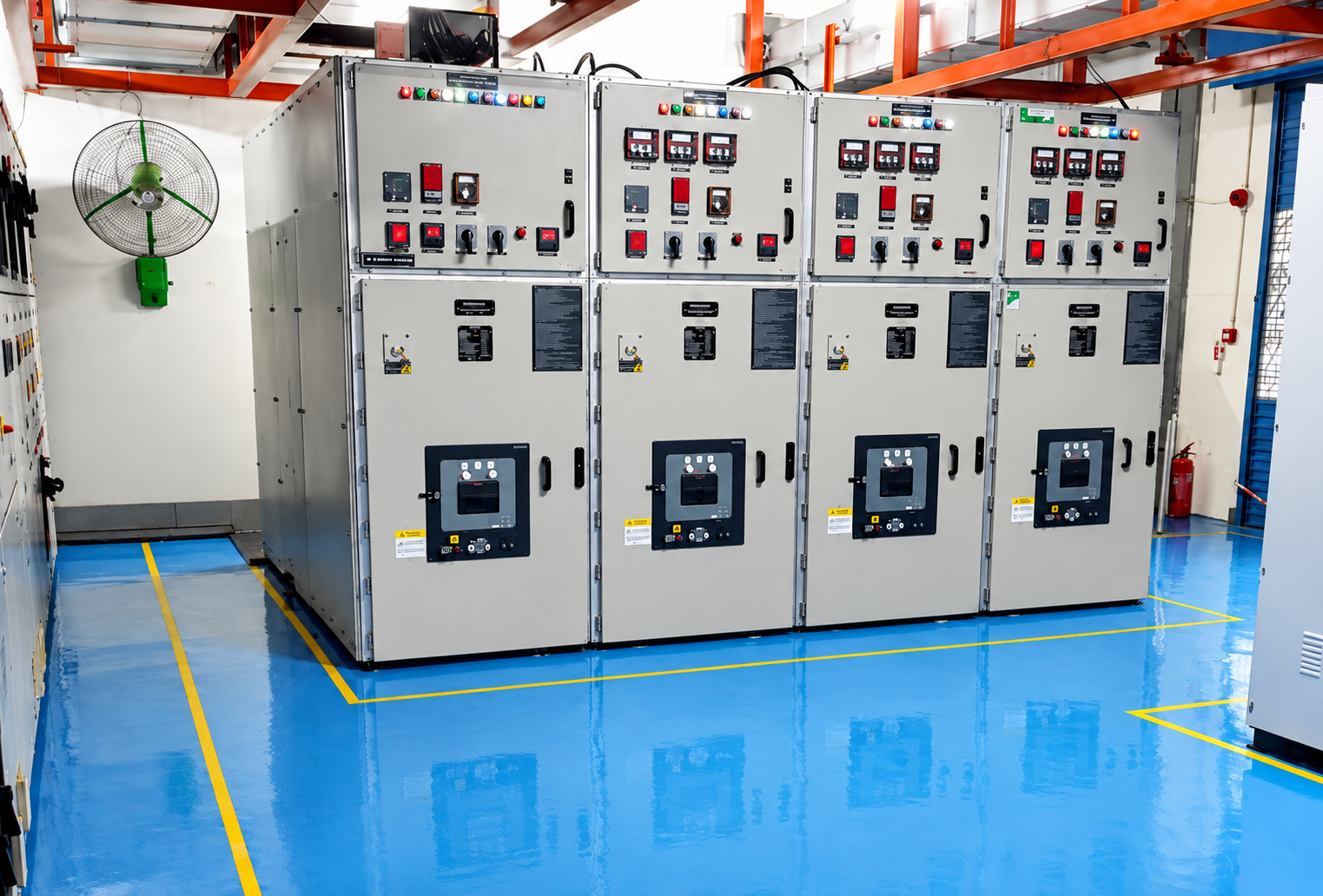

1311 STANGARD INSULKOTE
PROTECT OPERATORS.
REDUCE SHOCK RISK.
Continuous dielectric
flooring adds operator
shock protection.
Durable, dust-free
and easy to clean.
Flooring class and thickness
matched to operating
voltage.
15

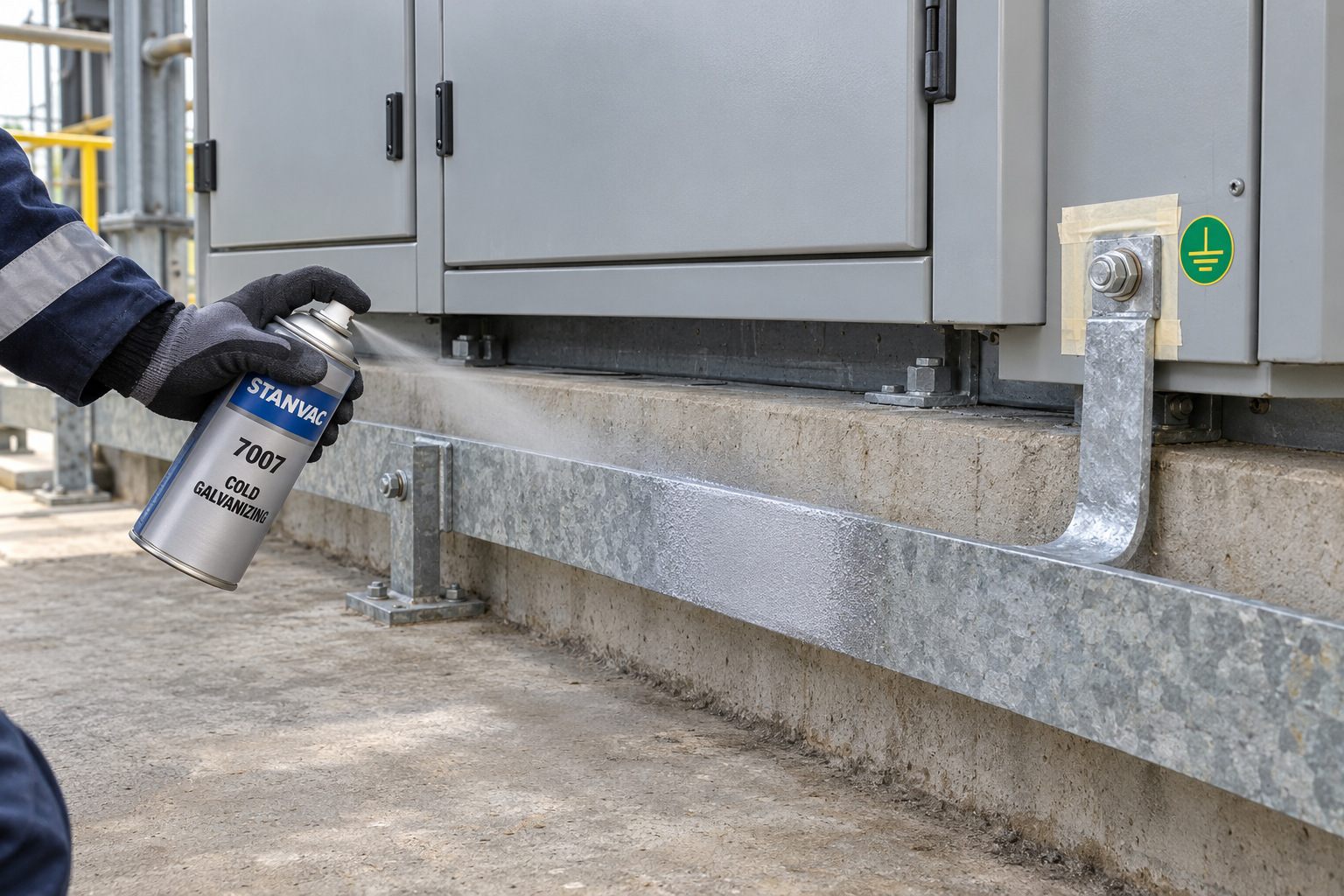

Z704 RUSTEX + 7007
KEEP EARTHING RELIABLE.
RESIST CORROSION.
Treat rusted areas;
add zinc-rich SHP
protection to exposed
GI earthing strips.
Resist corrosion and
extend service life.
Keep contact faces and
test links clear. Verify
earthing continuity.
16

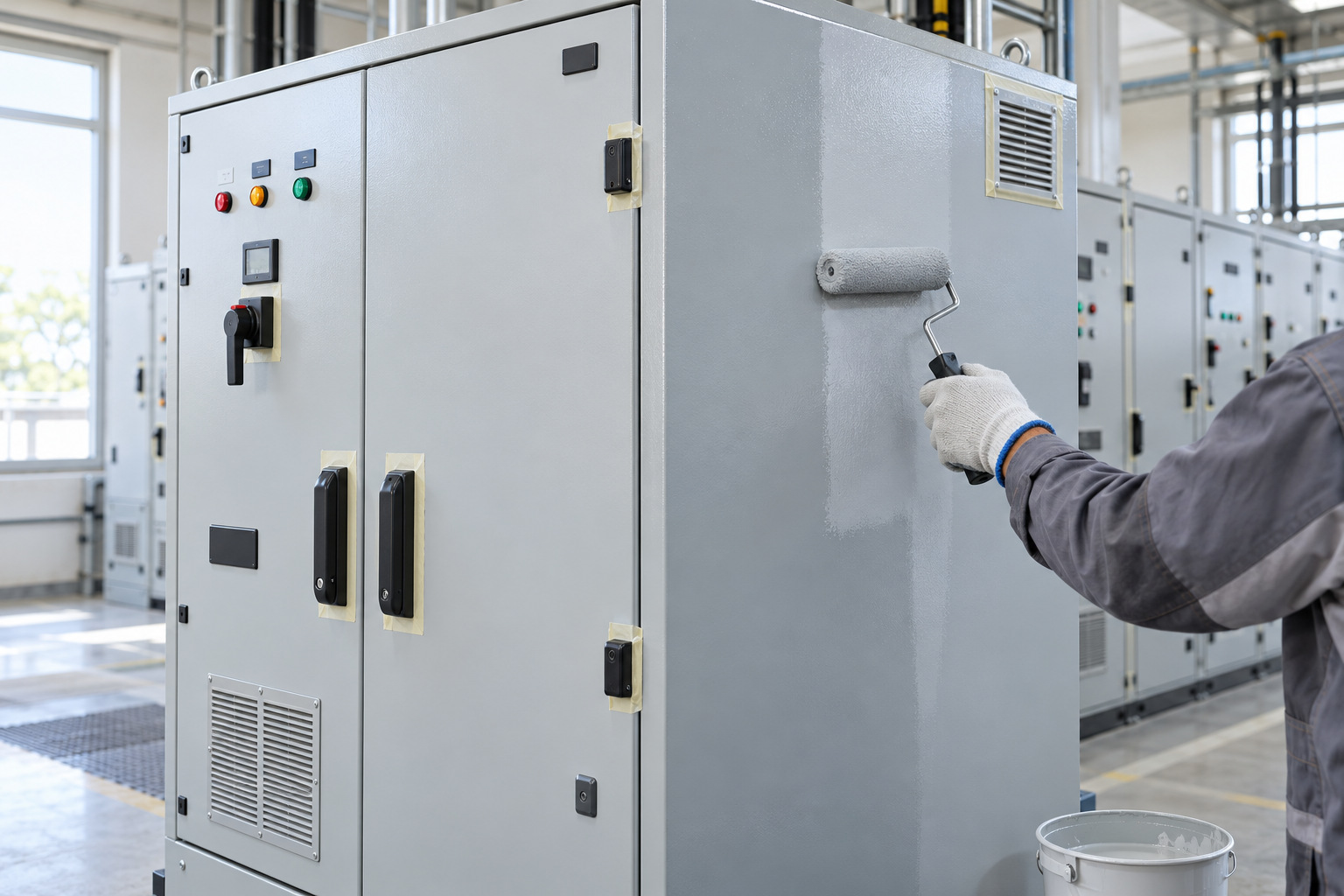

2080 ELECTROHYB SHP
LESS SHOCK RISK.
LESS PANEL CORROSION.
Dielectric SHP
coating for metal
panel bodies.
Reduces
leakage/contact risk
and resists corrosion.
Keep bonding contacts
clear. Retain earthing and
protective devices; apply
the specified thickness.
LESS CONCRETE DUST. CLEANER COOLING COILS.
754 + 727: seal general concrete floors, reduce dusting and ease cleaning.
Z102 CLEANAIRE 1200: clean AC/AHU coils to maintain effective cooling.
