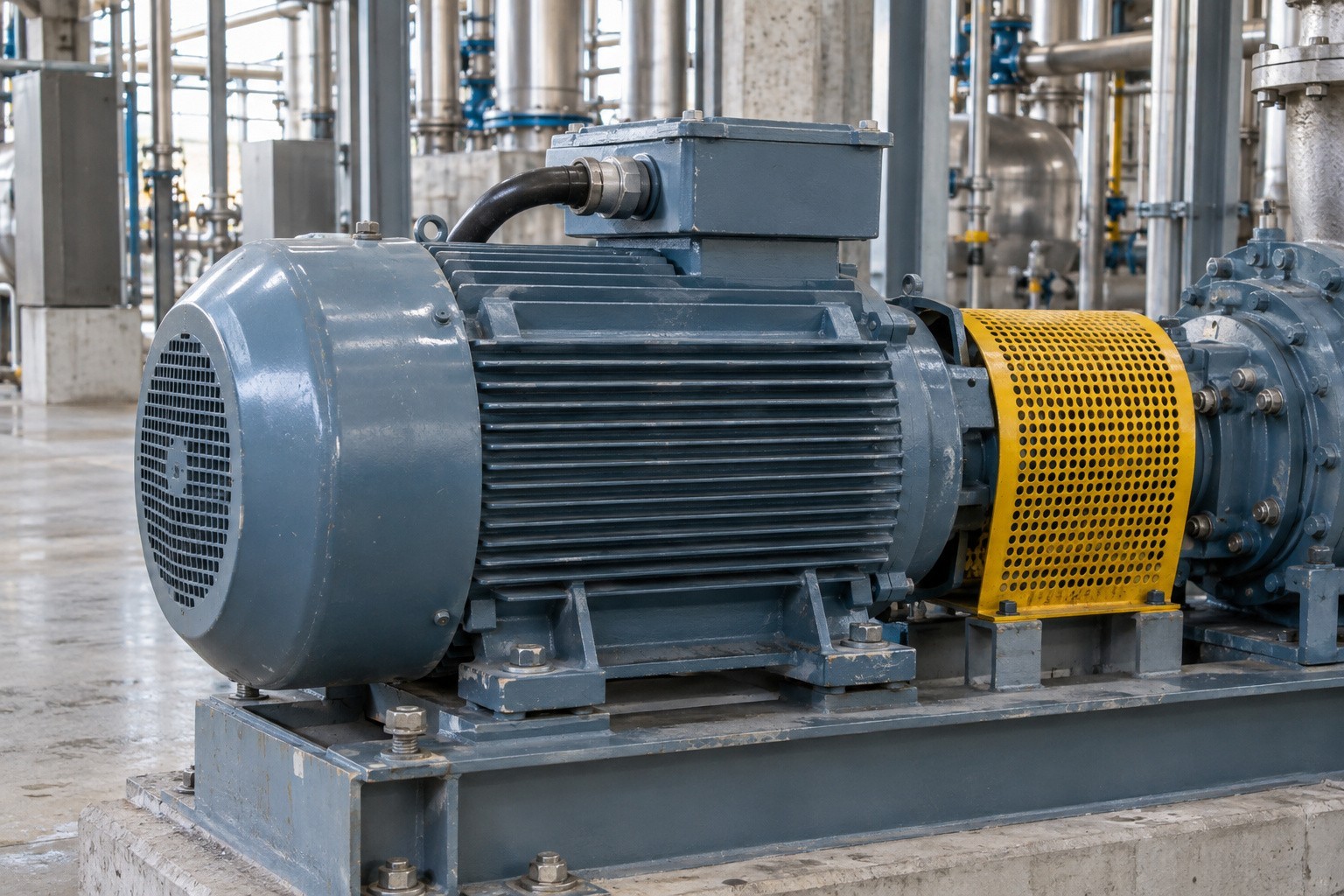

MOTOR FAILURES
STOP PRODUCTION.
COMPLETE MOTOR SOLUTIONS
Protect the motor. Protect your production.
FIVE CRITICAL AREAS.
ONE STANVAC SOLUTION SET.
Priority protection for critical drives.
HT motors. No standby. Repeated failures.

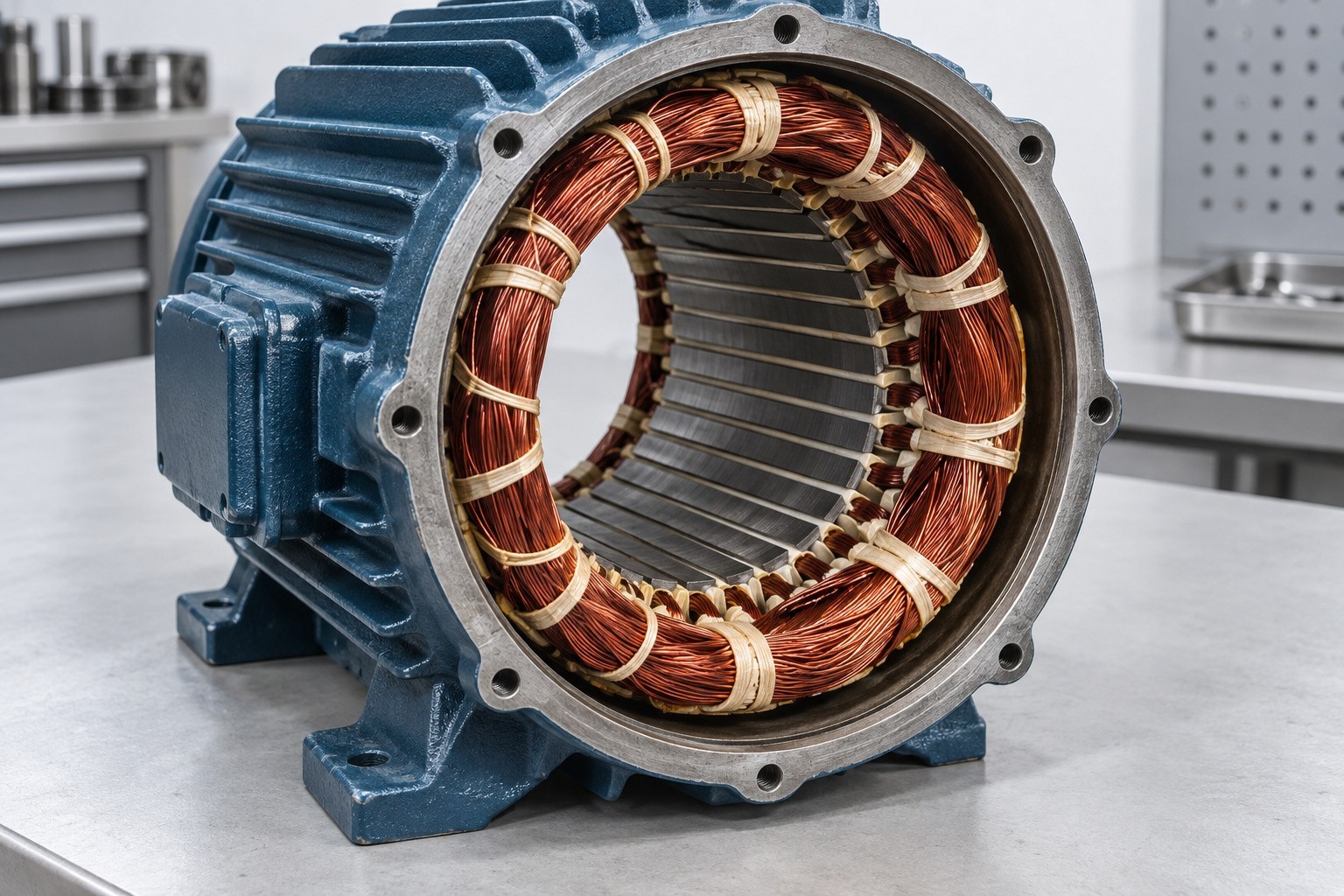

PROTECT INSULATION.
AVOID COSTLY REWINDS.
Moisture, oil and dust can lower insulation resistance (IR).
#8060 SAFETY SOLVENT
Non-flammable, residue-free dielectric cleaner
Removes oil and grease from winding surfaces.
#8070 ELECTRICAL 88 SHP
Heavier-than-water moisture displacer
Helps recover IR lost to surface moisture.
#6084 RED VARNISH SHP
Fast-drying Class F insulating varnish
Repels water and dust; shields windings from fumes.
Varnish needs an approved clean, dry surface preparation sequence. Verify IR before restart.

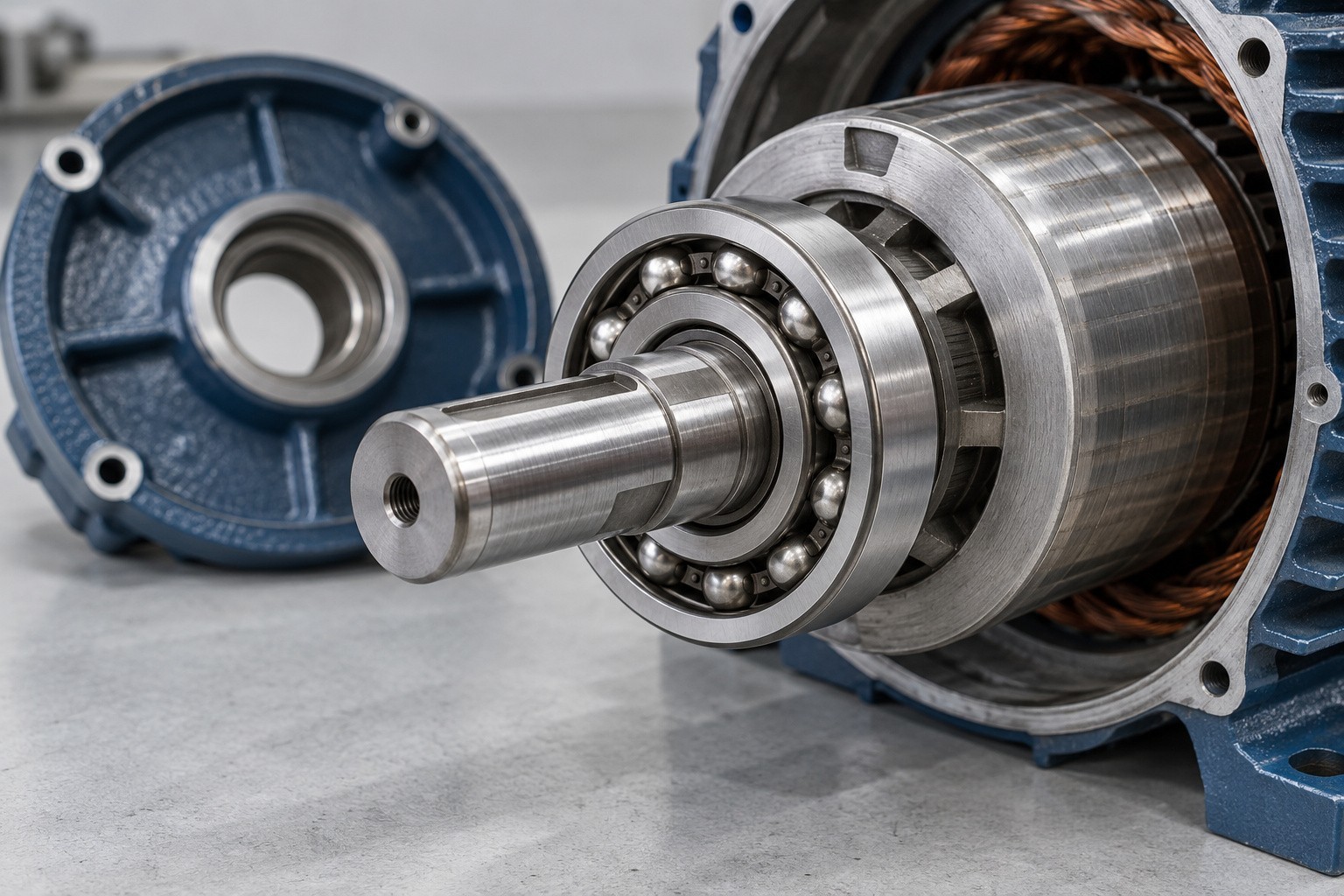

KEEP GREASE IN PLACE.
Protect the bearing and nearby windings.
SUPERQUIET 100
100% synthetic. PTFE-fortified motor grease.
- Resists softening and grease migration.
- Reduces friction and bearing wear.
- Helps protect windings from grease contamination.
Grease-lubricated bearings only. Confirm motor-OEM speed, temperature, quantity and grease compatibility.

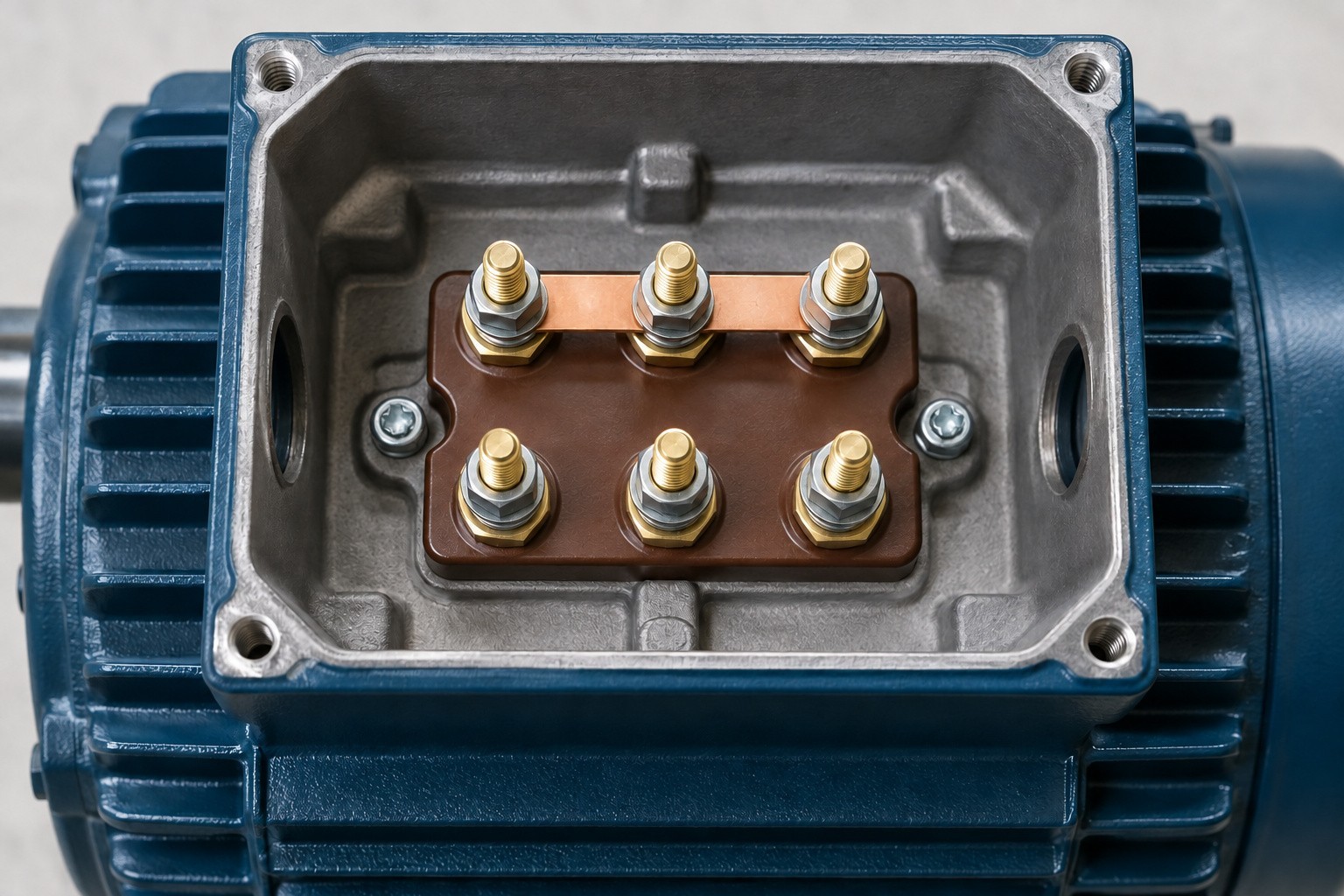

CLEAN CONTACTS.

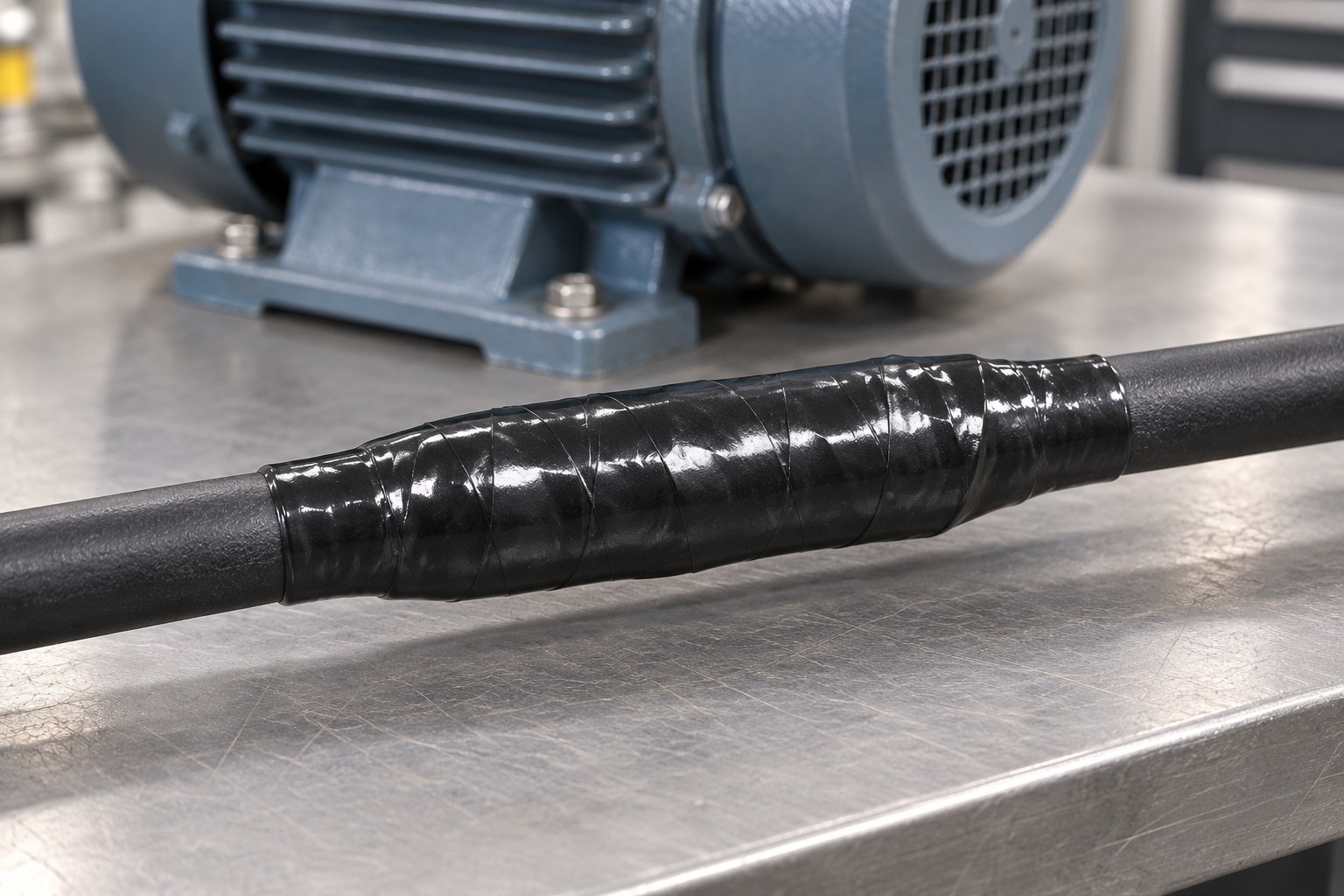

SEAL TAPED JOINTS.
#415 OFF-LINE CONTACT CLEANER
Plastic-safe, residue-free cleaner
Removes contact contamination for reliable connections.
Z931(A) STRIPPEX SHP
Rubberised external insulation
Seals assembled joint exteriors against moisture and dust.
#1465(A) FLEXIGUARD SHP
Flexible, fire-retardant joint sealer
Seals tape overlaps and aged sheathing against moisture and dust.
Apply external insulation after assembly and torque checks. Keep contact faces uncoated; confirm voltage suitability.
1465: over sound, correctly insulated taped joints. Confirm compatibility with the tape and cable sheath.

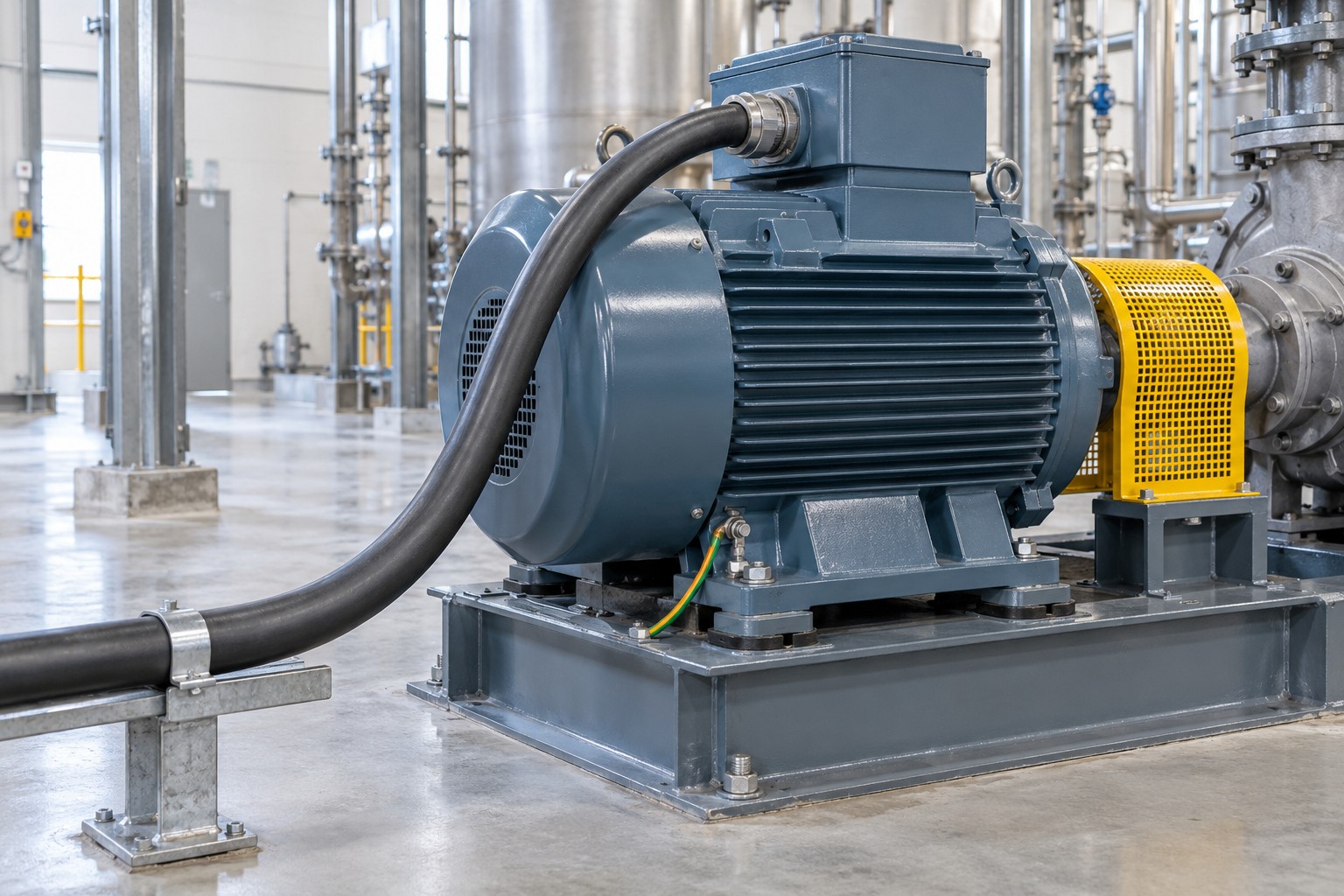

PROTECT THE CABLE
THAT POWERS THE MOTOR.
Cable damage can stop a healthy motor.
FIREX EC 43 GENERAL
Suppress flame spread on the motor supply cable.
Published 240-minute flame-propagation test
IEC 60332-3 · 1.6 mm dry film
FIREX EC 43 / SURVIVAL
Help preserve the motor’s cable circuit during fire.
950°C / 180 minutes · IS 17505-1
750°C / 240 minutes + 15 minutes cooling
IEC 60331-21
Published survival tests: low-voltage, 4-core 70 mm² XLPE cable at 1.6 mm dry film. Circuit-survival ratings must match operating voltage and cable construction.
ADD RODENT PROTECTION
FIREX 7034
Protect the motor’s supply cable from rodent damage.
Add a 0.5 mm topcoat over EC 43 where specified.

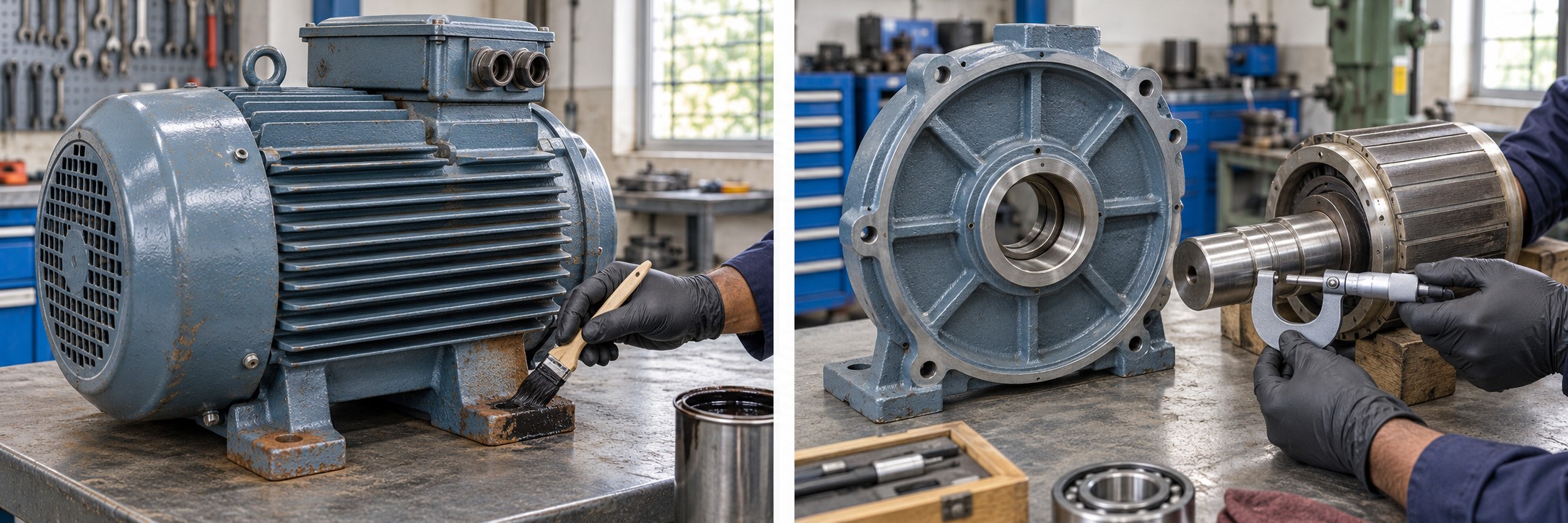

View published cable performanceTREAT THE RUST.
RECOVER WORN PARTS.
Z704 RUSTEX-NMB
Rust-converting primer
Treats residual rust on ferrous casings and bases.
2050 POLYHYB SHP
Protective outer finish
Repels water and dust; reduces repeat repainting.
Z730 STEELWELD
Machinable metal-repair putty
Rebuilds approved worn housings, keyways and shaft seats.
Z704: ferrous surfaces, 1-70°C. 2050: C1-C3 exterior exposure. Hot, wet, coastal or chemical duty needs a specific coating system.
Use Z730 where wear requires repair. Assess the component and machine to approved final tolerances.
A UNIQUE COMBINATION
FOR MOTOR FAILURE PREVENTION.
Windings. Bearings. Joints. Motor cable. Casing.
+91 85271 99811 digitalmktg@stanvac.com www.stanvac.comSTANVAC CHEMICALS (INDIA) LTD.
Keeping People Safe · Keeping Plants Running
Apply to isolated equipment, using the approved motor, cable and product specifications. Confirm compatibility and specified drying or cure before restart.
Product details: Electrical solutions · Mechanical solutions
